Specifications
| Alternator Charging Current (A) | 50 |

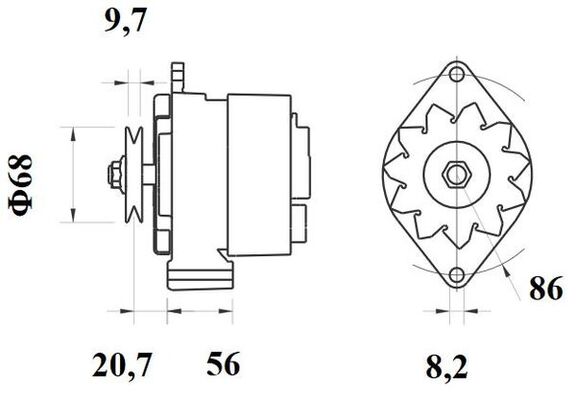

| Belt Pulley Ø (mm) | 68 |
| Bore Diameter (mm) | 8.2 |
| Connector/Clamp W | |
| Distance from belt pulley to alternator (mm) | 20.7 |
| Distance of mounting bores (mm) | 56.0 |
| Mounting points diameter (mm) | 86.0 |
| Net Weight (g) | 4590 |
| Number of belts 1 | |
| Number of ribs 1 | |
| Packaging height (cm) | 17.50 |
| Packaging length (cm) | 24.8 |
| Packaging width (cm) | 18.60 |
| Pulleys with belt pulley | |
| Rotation Direction Clockwise rotation | |
| Voltage (V) | 28 |
Alternator Charging Current [A] 50, Belt Pulley Ø [mm] 68, Bore Diameter [mm] 8,2, Connector/Clamp W, Distance from belt pulley to alternator [mm] 20,7, Distance of mounting bores [mm] 56,0, Mounting points diameter [mm] 86,0, Net Weight [g] 4590, Number of belts 1, Number of ribs 1, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 28
