Alternator
Alternator 1 Alternator 2 Alternator 3
Alternator

Alternator

Part No. MG 255 · SKU MG 255-MAHLE
₱27,200.00
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

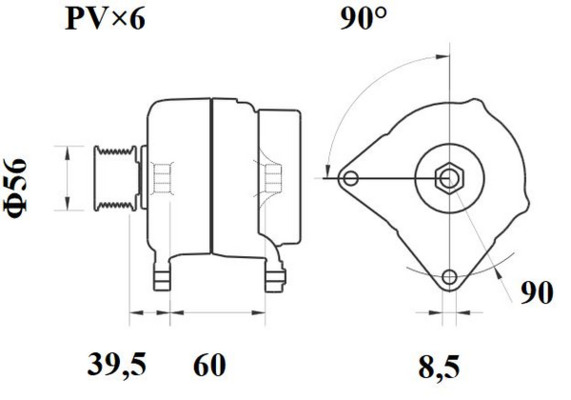

Specifications

Alternator Charging Current (A)90
Belt Pulley Ø (mm)56
Bore Diameter (mm)8.5
Distance from belt pulley to alternator (mm)39.5
Distance of mounting bores (mm)60.0
Dust Cover with dust cover
Mounting points diameter (mm)90.0
Net Weight (g)5790
Number of belts 6
Number of mounting bores 2
Number of ribs 6
Packaging height (cm)17.50
Packaging length (cm)24.8
Packaging width (cm)18.60
Pulleys with V-ribbed belt pulley
Rotation Direction Clockwise rotation
Alternator Charging Current [A] 90, Belt Pulley Ø [mm] 56, Bore Diameter [mm] 8,5, Distance from belt pulley to alternator [mm] 39,5, Distance of mounting bores [mm] 60,0, Dust Cover with dust cover, Mounting points diameter [mm] 90,0, Net Weight [g] 5790, Number of belts 6, Number of mounting bores 2, Number of ribs 6, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with V-ribbed belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
Fits: AUDI, SKODA, VW

Supplier Cross-References

MAHLEMG255 SPIDAN2652 FRIESEN9038370 VW021903017A HELLA8EL011711031 BOSCH120485038

Interchangeable Part Numbers

BOSCH0123320034 BOSCH0986040940 DELCO REMYDRB0940 LUCAS ELECTRICALLRB00387

OE Numbers — AUDI

037903025C

OE Numbers — VW 037 903 025

C
MakeModelType / Engine YearsCCkWHP
AUDI A3 (8L1) 1.6 1996 – 2006 1595 74 101
AUDI A3 (8L1) 1.8 1996 – 2006 1781 92 125
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 110 150
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 66 90
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 81 110
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 132 180
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 154 210
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 110 150
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 132 180
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.6 1996 – 2006 1595 75 102
AUDI A3 (8L1) 1.9 TDI quattro 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 74 100
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 165 224
AUDI A3 (8L1) 1.6 1996 – 2006 1598 74 101
