Alternator
Alternator 1 Alternator 2 Alternator 3
Alternator

Alternator

Part No. MG 380 · SKU MG 380-MAHLE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

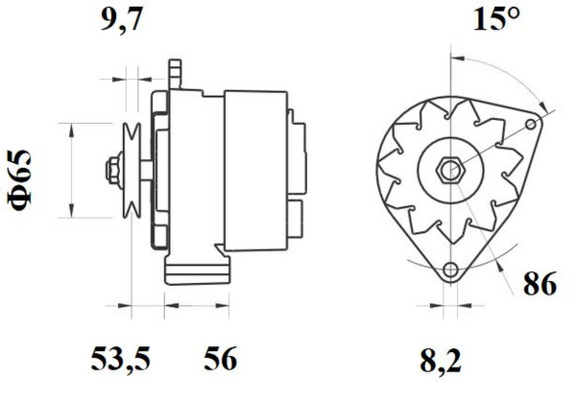

Specifications

Alternator Charging Current (A)45
Belt Pulley Ø (mm)65
Bore Diameter (mm)8.2
Connector/Clamp W
Distance from belt pulley to alternator (mm)53.5
Distance of mounting bores (mm)56.0
Mounting Angle (degrees)15.0
Mounting points diameter (mm)86.0
Net Weight (g)4500
Number of belts 1
Number of ribs 1
Packaging height (cm)17.50
Packaging length (cm)24.8
Packaging width (cm)18.60
Pulleys with belt pulley
Rotation Direction Clockwise rotation
Alternator Charging Current [A] 45, Belt Pulley Ø [mm] 65, Bore Diameter [mm] 8,2, Connector/Clamp W, Distance from belt pulley to alternator [mm] 53,5, Distance of mounting bores [mm] 56,0, Mounting Angle [degrees] 15,0, Mounting points diameter [mm] 86,0, Net Weight [g] 4500, Number of belts 1, Number of ribs 1, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
Fits: AUDI, VW

Interchangeable Part Numbers

BOSCH0120489012 BOSCH0120489013 BOSCH0120489744 BOSCH0120489745 BOSCH0120489799 BOSCH0120489800 BOSCH0120489863 BOSCH0120489864 BOSCH0120489865 BOSCH0120489866 BOSCH0120489960 BOSCH0120489961 BOSCH0986030610 BOSCH0986031470 BOSCH0986031478 DELCO REMYDRA0610 HC-Cargo111653 LUCAS ELECTRICALLRA00991 MAGNETI MARELLI9433 567 39 MAGNETI MARELLI MAR610 MAGNETI MARELLIMAR610 VALEO436 214 VALEO436 216

OE Numbers — AUDI

036903017AX 068903017A 068903017AX 068903025J 068903025Q 68903017AX
MakeModelType / Engine YearsCCkWHP
AUDI 50 (863) 1.1 1974 – 1978 1093 37 50
AUDI 50 (863) 1.1 1974 – 1978 1093 44 60
AUDI 50 (863) 1.3 1974 – 1978 1272 44 60
AUDI 50 (863) 0.8 1974 – 1978 771 25 34
AUDI 50 (863) 1.3 1974 – 1978 1272 43 58
