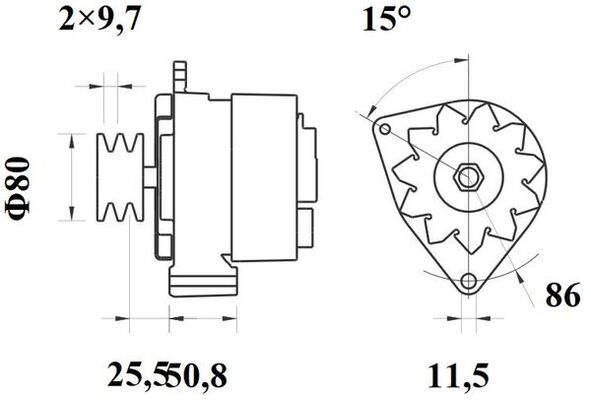

Specifications
| Alternator Charging Current (A) | 55 |
| Belt Pulley Ø (mm) | 80 |
| Bore Diameter (mm) | 11.5 |
| Distance from belt pulley to alternator (mm) | 25.5 |
| Distance of mounting bores (mm) | 50.8 |
| Dust Cover with dust cover | |
| Mounting points diameter (mm) | 86.0 |
| Net Weight (g) | 5266 |
| Number of belts 2 | |
| Number of ribs 2 | |
| Packaging height (cm) | 17.50 |
| Packaging length (cm) | 24.8 |
| Packaging width (cm) | 18.60 |
| Pulleys with double pulley | |
| Rotation Direction Clockwise rotation | |
| Voltage (V) | 28 |
Alternator Charging Current [A] 55, Belt Pulley Ø [mm] 80, Bore Diameter [mm] 11,5, Distance from belt pulley to alternator [mm] 25,5, Distance of mounting bores [mm] 50,8, Dust Cover with dust cover, Mounting points diameter [mm] 86,0, Net Weight [g] 5266, Number of belts 2, Number of ribs 2, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with double pulley, Rotation Direction Clockwise rotation, Voltage [V] 28
