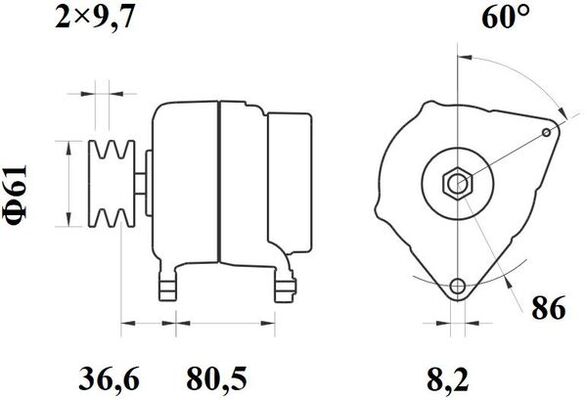

Specifications
| Alternator Charging Current (A) | 95 |
| Belt Pulley Ø (mm) | 61 |
| Bore Diameter (mm) | 8.2 |
| Distance from belt pulley to alternator (mm) | 36.6 |
| Distance of mounting bores (mm) | 80.5 |
| Dust Cover with dust cover | |
| Mounting Angle (degrees) | 60.0 |
| Mounting points diameter (mm) | 86.0 |
| Net Weight (g) | 5740 |
| Number of belts 2 | |
| Number of ribs 2 | |
| Packaging height (cm) | 17.50 |
| Packaging length (cm) | 24.8 |
| Packaging width (cm) | 18.60 |
| Pulleys with double pulley | |
| Rotation Direction Clockwise rotation | |
Alternator Charging Current [A] 95, Belt Pulley Ø [mm] 61, Bore Diameter [mm] 8,2, Distance from belt pulley to alternator [mm] 36,6, Distance of mounting bores [mm] 80,5, Dust Cover with dust cover, Mounting Angle [degrees] 60,0, Mounting points diameter [mm] 86,0, Net Weight [g] 5740, Number of belts 2, Number of ribs 2, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with double pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
