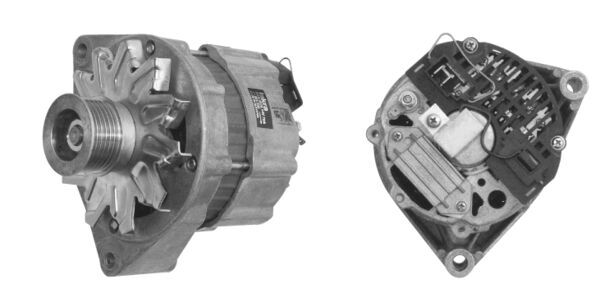

Alternator
Alternator 1 Alternator 2 Alternator 3
Alternator

Alternator

Part No. MG 430 · SKU MG 430-MAHLE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

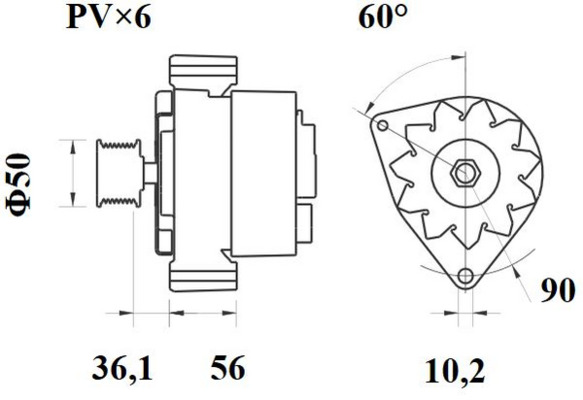

Specifications

Alternator Charging Current (A)70
Belt Pulley Ø (mm)50
Bore Diameter (mm)10.2
Distance from belt pulley to alternator (mm)36.1
Distance of mounting bores (mm)56.0
Mounting points diameter (mm)90.0
Net Weight (g)5000
Number of belts 6
Number of mounting bores 2
Number of ribs 6
Packaging height (cm)17.50
Packaging length (cm)24.8
Packaging width (cm)18.60
Pulleys with V-ribbed belt pulley
Rotation Direction Clockwise rotation
Voltage (V)14
Alternator Charging Current [A] 70, Belt Pulley Ø [mm] 50, Bore Diameter [mm] 10,2, Distance from belt pulley to alternator [mm] 36,1, Distance of mounting bores [mm] 56,0, Mounting points diameter [mm] 90,0, Net Weight [g] 5000, Number of belts 6, Number of mounting bores 2, Number of ribs 6, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with V-ribbed belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

BOSCH0120489321 BOSCH0120489322 BOSCH0120489330 BOSCH0986033730 DELCO REMYDRA3720 LUCAS ELECTRICALLRA00717 MAGNETI MARELLI MAR520 MAGNETI MARELLIMAR520

OE Numbers — MERCEDES-BENZ 007 154 56

02

OE Numbers — MERCEDES-BENZ

0071545602 A0071545602
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ 124 Coupe (C124) 320 CE (124.052) 1987 – 1993 3199 162 220
MERCEDES-BENZ 124 Coupe (C124) 220 CE (124.042) 1987 – 1993 2199 110 150
MERCEDES-BENZ 124 Coupe (C124) 200 CE (124.040) 1987 – 1993 1998 100 136
MERCEDES-BENZ 124 Coupe (C124) 300 CE-24 (124.051) 1987 – 1993 2960 170 231
MERCEDES-BENZ 124 Coupe (C124) 200 CE (124.041) 1987 – 1993 1996 87 118
MERCEDES-BENZ 124 Coupe (C124) 200 CE (124.041) 1987 – 1993 1996 90 122
MERCEDES-BENZ 124 Coupe (C124) 230 CE (124.043) 1987 – 1993 2298 97 132
MERCEDES-BENZ 124 Coupe (C124) 230 CE (124.043) 1987 – 1993 2298 100 136
MERCEDES-BENZ 124 Coupe (C124) 300 CE 1987 – 1993 2960 138 188
MERCEDES-BENZ 124 Coupe (C124) 300 CE-24 (124.051) 1987 – 1993 2960 162 220
MERCEDES-BENZ 124 Coupe (C124) 230 CE Cat (124.043) 1987 – 1993 2298 97 132
MERCEDES-BENZ 124 Coupe (C124) 300 CE (124.050) 1987 – 1993 2960 132 180
MERCEDES-BENZ 124 Saloon (W124) 200 (124.020) 1984 – 1993 1996 75 102
MERCEDES-BENZ 124 Saloon (W124) 200 (124.020) 1984 – 1993 1996 80 109
MERCEDES-BENZ 124 Saloon (W124) 200 E (124.021) 1984 – 1993 1996 87 118
MERCEDES-BENZ 124 Saloon (W124) 200 E (124.021) 1984 – 1993 1996 90 122
MERCEDES-BENZ 124 Saloon (W124) 230 E (124.023) 1984 – 1993 2298 97 132
MERCEDES-BENZ 124 Saloon (W124) 230 E (124.023) 1984 – 1993 2298 100 136
MERCEDES-BENZ 124 Saloon (W124) 260 E 4-matic (124.226) 1984 – 1993 2597 118 160
MERCEDES-BENZ 124 Saloon (W124) 260 E (124.026) 1984 – 1993 2597 118 160
MERCEDES-BENZ 124 Saloon (W124) 260 E (124.026) 1984 – 1993 2597 122 166
MERCEDES-BENZ 124 Saloon (W124) 260 E 4-matic (124.226) 1984 – 1993 2597 122 166
MERCEDES-BENZ 124 Saloon (W124) 300 E 1984 – 1993 2960 138 188
MERCEDES-BENZ 124 Saloon (W124) 300 E (124.030) 1984 – 1993 2960 132 180
MERCEDES-BENZ 124 Saloon (W124) 300 E 4-matic (124.230) 1984 – 1993 2960 132 180
MERCEDES-BENZ 124 Saloon (W124) 300 E 4-matic 1984 – 1993 2960 138 188
MERCEDES-BENZ 124 Saloon (W124) 300 E 1984 – 1993 2960 138 188
MERCEDES-BENZ 124 Saloon (W124) 200 D (124.120) 1984 – 1993 1997 53 72
MERCEDES-BENZ 124 Saloon (W124) 200 D (124.120) 1984 – 1993 1997 55 75
MERCEDES-BENZ 124 Saloon (W124) 250 D (124.125) 1984 – 1993 2497 66 90
MERCEDES-BENZ 124 Saloon (W124) 250 D (124.125) 1984 – 1993 2497 69 94
MERCEDES-BENZ 124 Saloon (W124) 250 Turbo-D (124.128) 1984 – 1993 2497 93 126
MERCEDES-BENZ 124 Saloon (W124) 300 D (124.130) 1984 – 1993 2996 80 109
MERCEDES-BENZ 124 Saloon (W124) 300 D 4-matic (124.330) 1984 – 1993 2996 80 109
MERCEDES-BENZ 124 Saloon (W124) 300 D (124.130) 1984 – 1993 2996 81 110
MERCEDES-BENZ 124 Saloon (W124) 300 D 4-matic (124.330) 1984 – 1993 2996 83 113
MERCEDES-BENZ 124 Saloon (W124) 300 D (124.130) 1984 – 1993 2996 83 113
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D 4-matic (124.333) 1984 – 1993 2996 105 143
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D 4-matic (124.333) 1984 – 1993 2996 108 147
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D (124.133) 1984 – 1993 2996 108 147
MERCEDES-BENZ 124 Saloon (W124) 200 1984 – 1993 1996 77 105
MERCEDES-BENZ 124 Saloon (W124) 300 E-24 (124.031) 1984 – 1993 2960 162 220
MERCEDES-BENZ 124 Saloon (W124) 500 E (124.036) 1984 – 1993 4973 240 326
MERCEDES-BENZ 124 Saloon (W124) 200 E (124.019) 1984 – 1993 1998 100 136
MERCEDES-BENZ 124 Saloon (W124) 220 E (124.022) 1984 – 1993 2199 110 150
MERCEDES-BENZ 124 Saloon (W124) 280 E (124.028) 1984 – 1993 2799 145 197
MERCEDES-BENZ 124 Saloon (W124) 400 E 4.2 (124.034) 1984 – 1993 4196 205 279
MERCEDES-BENZ 124 Saloon (W124) 300 E-24 AMG (124.031) 1984 – 1993 3428 200 272
MERCEDES-BENZ 124 Saloon (W124) 500 E 1984 – 1993 4973 235 320
MERCEDES-BENZ 124 Saloon (W124) 300 D 1984 – 1993 2497 90 121
MERCEDES-BENZ 124 Saloon (W124) 300 E-24 (124.031) 1984 – 1993 2960 170 231
MERCEDES-BENZ 124 Saloon (W124) 200 E 1984 – 1993 1997 77 105
MERCEDES-BENZ 124 Saloon (W124) 230 E Cat (124.023) 1984 – 1993 2298 97 132
MERCEDES-BENZ 124 Saloon (W124) 300 Turbo-D (124.133) 1984 – 1993 2996 105 143
MERCEDES-BENZ 124 Saloon (W124) 320 E (124.032) 1984 – 1993 3199 162 220
MERCEDES-BENZ 124 T-Model (S124) 230 TE (124.083) 1985 – 1993 2298 97 132
MERCEDES-BENZ 124 T-Model (S124) 200 T 1985 – 1993 1997 77 105
MERCEDES-BENZ 124 T-Model (S124) 300 TD T 1985 – 1993 2996 100 136
MERCEDES-BENZ 124 T-Model (S124) 300 T Turbo-D 1985 – 1993 2996 105 143
MERCEDES-BENZ 124 T-Model (S124) 200 TE (124.079) 1985 – 1993 1998 100 136
MERCEDES-BENZ 124 T-Model (S124) 250 TD Turbo (124.188) 1985 – 1993 2497 93 126
MERCEDES-BENZ 124 T-Model (S124) 280 TE (124.088) 1985 – 1993 2799 145 197
MERCEDES-BENZ 124 T-Model (S124) 300 TE-24 (124.091) 1985 – 1993 2960 170 231
MERCEDES-BENZ 124 T-Model (S124) 320 TE (124.092) 1985 – 1993 3199 162 220
MERCEDES-BENZ 124 T-Model (S124) 300 T Turbo-D (124.193) 1985 – 1993 2996 108 147
MERCEDES-BENZ 124 T-Model (S124) 200 T (124.080) 1985 – 1993 1996 77 105
MERCEDES-BENZ 124 T-Model (S124) 200 T (124.080) 1985 – 1993 1996 80 109
MERCEDES-BENZ 124 T-Model (S124) 200 TE (124.081) 1985 – 1993 1996 87 118
MERCEDES-BENZ 124 T-Model (S124) 200 TE 1985 – 1993 1996 90 122
MERCEDES-BENZ 124 T-Model (S124) 230 TE Cat (124.083) 1985 – 1993 2298 97 132
MERCEDES-BENZ 124 T-Model (S124) 230 TE (124.083) 1985 – 1993 2298 100 136
MERCEDES-BENZ 124 T-Model (S124) 300 TE 4-matic (124.290) 1985 – 1993 2960 132 180
MERCEDES-BENZ 124 T-Model (S124) 300 TE (124.090) 1985 – 1993 2960 132 180
MERCEDES-BENZ 124 T-Model (S124) 300 TE (124.090) 1985 – 1993 2960 138 188
MERCEDES-BENZ 124 T-Model (S124) 300 TE 4-matic (124.290) 1985 – 1993 2960 138 188
MERCEDES-BENZ 124 T-Model (S124) 200 T D (124.180) 1985 – 1993 1997 53 72
MERCEDES-BENZ 124 T-Model (S124) 200 T D (124.180) 1985 – 1993 1997 55 75
MERCEDES-BENZ 124 T-Model (S124) 250 T D (124.185) 1985 – 1993 2497 66 90
MERCEDES-BENZ 124 T-Model (S124) 250 T D (124.185) 1985 – 1993 2497 69 94
MERCEDES-BENZ 124 T-Model (S124) 300 T D (124.190) 1985 – 1993 2996 80 109
MERCEDES-BENZ 124 T-Model (S124) 300 T D (124.190) 1985 – 1993 2996 81 110
MERCEDES-BENZ 124 T-Model (S124) 300 T D (124.190) 1985 – 1993 2996 83 113
MERCEDES-BENZ 124 T-Model (S124) 300 T Turbo-D 4-matic (124.393) 1985 – 1993 2996 105 143
MERCEDES-BENZ 124 T-Model (S124) 300 T Turbo-D 4-matic (124.393) 1985 – 1993 2996 108 147
MERCEDES-BENZ 124 T-Model (S124) 300 TE-24 (124.091) 1985 – 1993 2960 162 220
MERCEDES-BENZ 124 T-Model (S124) 260 TE FGST. 1985 – 1993 2597 118 160
MERCEDES-BENZ 124 T-Model (S124) 260 TE FGST. 1985 – 1993 2597 122 166
MERCEDES-BENZ 124 T-Model (S124) 220 TE (124.082) 1985 – 1993 2199 110 150
MERCEDES-BENZ 190 (W201) E 1.8 (201.018) 1982 – 1993 1797 80 109
MERCEDES-BENZ 190 (W201) 2.0 (201.022) 1982 – 1993 1996 66 90
MERCEDES-BENZ 190 (W201) E 2.0 (201.024) 1982 – 1993 1996 83 113
MERCEDES-BENZ 190 (W201) E 2.0 (201.024) 1982 – 1993 1996 85 116
MERCEDES-BENZ 190 (W201) 2.0 (201.023) 1982 – 1993 1996 75 102
MERCEDES-BENZ 190 (W201) 2.0 (201.023) 1982 – 1993 1996 77 105
MERCEDES-BENZ 190 (W201) E 2.0 1982 – 1993 1996 87 118
MERCEDES-BENZ 190 (W201) E 2.0 (201.024) 1982 – 1993 1996 90 122
MERCEDES-BENZ 190 (W201) E 2.3-16 1982 – 1993 2298 125 170
MERCEDES-BENZ 190 (W201) E 2.3-16 1982 – 1993 2298 130 177
MERCEDES-BENZ 190 (W201) E 2.3-16 (201.034) 1982 – 1993 2298 136 185
MERCEDES-BENZ 190 (W201) E 2.3 1982 – 1993 2298 97 132
MERCEDES-BENZ 190 (W201) E 2.3 (201.028) 1982 – 1993 2298 100 136
MERCEDES-BENZ 190 (W201) E 2.5-16 Evolution (201.036) 1982 – 1993 2498 143 194
MERCEDES-BENZ 190 (W201) E 2.5-16 (201.035) 1982 – 1993 2498 150 204
MERCEDES-BENZ 190 (W201) E 2.6 1982 – 1993 2597 122 166
MERCEDES-BENZ 190 (W201) D 2.0 (201.122) 1982 – 1993 1997 53 72
MERCEDES-BENZ 190 (W201) D 2.0 (201.122) 1982 – 1993 1997 55 75
MERCEDES-BENZ 190 (W201) D 2.5 (201.126) 1982 – 1993 2497 66 90
MERCEDES-BENZ 190 (W201) D 2.5 (201.126) 1982 – 1993 2497 69 94
MERCEDES-BENZ 190 (W201) Turbo-D 2.5 (201.128) 1982 – 1993 2497 90 122
MERCEDES-BENZ 190 (W201) Turbo-D 2.5 (201.128) 1982 – 1993 2497 93 126
MERCEDES-BENZ 190 (W201) E 2.5-16 Evolution II 1982 – 1993 2498 173 235
MERCEDES-BENZ 190 (W201) E 2.6 (201.029) 1982 – 1993 2597 118 160
MERCEDES-BENZ 190 (W201) E 2.0 1982 – 1993 1996 93 126
MERCEDES-BENZ 190 (W201) E 2.5-16 (201.035) 1982 – 1993 2498 143 194
MERCEDES-BENZ 190 (W201) 190 D (201.122) 1982 – 1993 2197 54 72
MERCEDES-BENZ 190 (W201) 2.6 1982 – 1993 2599 118 160
MERCEDES-BENZ 190 (W201) 2.3 E 1982 – 1993 2299 100 136
MERCEDES-BENZ 190 (W201) 2.3 1982 – 1993 2299 97 132
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 119 162
MERCEDES-BENZ SL (R107) 380 SL (107.045) 1971 – 1989 3839 116 158
MERCEDES-BENZ SL (R107) 560 SL (107.048) 1971 – 1989 5547 169 230
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 134 182
MERCEDES-BENZ SL (R107) 560 SL 1971 – 1989 5547 178 242
MERCEDES-BENZ SL (R107) 350 SL (107.043) 1971 – 1989 3499 147 200
MERCEDES-BENZ SL (R107) 280 SL (107.042) 1971 – 1989 2746 130 177
MERCEDES-BENZ SL (R107) 280 SL (107.042) 1971 – 1989 2746 136 185
MERCEDES-BENZ SL (R107) 300 SL (107.041) 1971 – 1989 2960 132 180
MERCEDES-BENZ SL (R107) 300 SL (107.041) 1971 – 1989 2960 138 188
MERCEDES-BENZ SL (R107) 350 SL (107.043) 1971 – 1989 3499 143 195
MERCEDES-BENZ SL (R107) 380 SL (107.045) 1971 – 1989 3818 160 218
MERCEDES-BENZ SL (R107) 380 SL (107.045) 1971 – 1989 3839 150 204
MERCEDES-BENZ SL (R107) 420 SL (107.047) 1971 – 1989 4196 150 204
MERCEDES-BENZ SL (R107) 420 SL (107.047) 1971 – 1989 4196 160 218
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 160 218
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 165 224
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 164 223
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 170 231
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 177 241
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 180 245
