Alternator

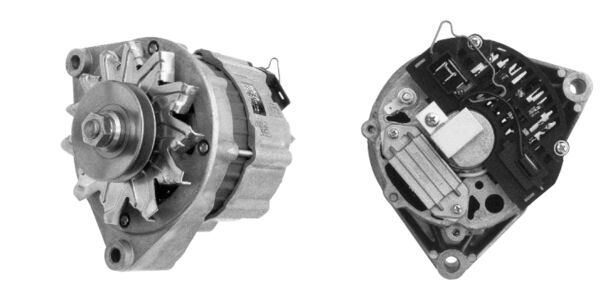

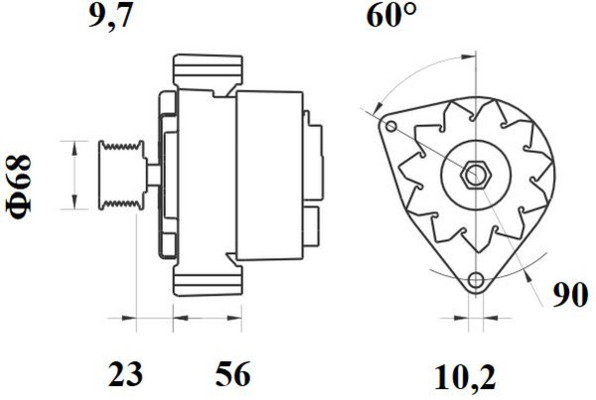

Alternator 1 Alternator 2 Alternator 3
Alternator

Alternator

Part No. MG 431 · SKU MG 431-MAHLE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Alternator Charging Current (A)70
Belt Pulley Ø (mm)68
Bore Diameter (mm)10.2
Distance from belt pulley to alternator (mm)23.0
Distance of mounting bores (mm)56.0
Mounting points diameter (mm)90.0
Net Weight (g)4800
Number of belts 1
Number of mounting bores 2
Number of ribs 1
Packaging height (cm)17.50
Packaging length (cm)24.8
Packaging width (cm)18.60
Pulleys with belt pulley
Rotation Direction Clockwise rotation
Voltage (V)14
Alternator Charging Current [A] 70, Belt Pulley Ø [mm] 68, Bore Diameter [mm] 10,2, Distance from belt pulley to alternator [mm] 23,0, Distance of mounting bores [mm] 56,0, Mounting points diameter [mm] 90,0, Net Weight [g] 4800, Number of belts 1, Number of mounting bores 2, Number of ribs 1, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

BOSCH0 986 031 421 BOSCH0 986 031 423 BOSCH0 986 033 671 BOSCH0120489025 BOSCH0120489026 BOSCH0120489078 BOSCH0120489079 BOSCH0120489184 BOSCH0120489897 BOSCH0120489898 BOSCH0120489899 BOSCH0120489928 BOSCH0120489930 BOSCH0986031420 DELCO REMYDRA1420 LUCAS ELECTRICALLRA00988 MAGNETI MARELLI9433 566 12 MAGNETI MARELLI MAR512 MAGNETI MARELLIMAR512 VALEO436 126

OE Numbers — MERCEDES-BENZ

005 154 95 02 006 154 05 02 006 154 06 02 006 154 20 02 006 154 42 02 006 154 43 02 006 154 61 02 A005 154 95 02 A006 154 05 02 A006 154 06 02 A006 154 20 02 A006 154 42 02 A006 154 43 02 A006 154 61 02
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ S-CLASS (W126) 260 SE (126.020) 1979 – 1991 2599 122 166
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL 1979 – 1991 4196 150 204
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032, 126.033) 1979 – 1991 3839 145 197
MERCEDES-BENZ S-CLASS (W126) 300 SDL (126.125) 1979 – 1991 2996 110 150
MERCEDES-BENZ S-CLASS (W126) 350 SD, SDL 1979 – 1991 3449 110 150
MERCEDES-BENZ S-CLASS (W126) 500 SEL (126.037) 1979 – 1991 4973 137 186
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032) 1979 – 1991 3839 116 158
MERCEDES-BENZ S-CLASS (W126) 300 SDL (126.125) 1979 – 1991 2996 107 146
MERCEDES-BENZ S-CLASS (W126) 300 SD (126.120) 1979 – 1991 2998 92 125
MERCEDES-BENZ S-CLASS (W126) 3.8 1979 – 1991 3818 160 218
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL Cat 1979 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL 1979 – 1991 5547 220 300
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL 1979 – 1991 5547 205 279
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL (126.038) 1979 – 1991 5547 200 272
MERCEDES-BENZ S-CLASS (W126) 560 SE, SEL (126.038, 126.039) 1979 – 1991 5547 178 242
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL 1979 – 1991 4973 195 265
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 180 245
MERCEDES-BENZ S-CLASS (W126) 260 SE (126.020) 1979 – 1991 2599 118 160
MERCEDES-BENZ S-CLASS (W126) 280 S (126.021) 1979 – 1991 2746 115 156
MERCEDES-BENZ S-CLASS (W126) 280 SE, SEL (126.022, 126.023) 1979 – 1991 2746 136 185
MERCEDES-BENZ S-CLASS (W126) 300 SE, SEL (126.024, 126.025) 1979 – 1991 2960 132 180
MERCEDES-BENZ S-CLASS (W126) 300 SE, SEL (126.024, 126.025) 1979 – 1991 2960 138 188
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032, 126.033) 1979 – 1991 3818 160 218
MERCEDES-BENZ S-CLASS (W126) 380 SE, SEL (126.032) 1979 – 1991 3839 150 204
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL (126.034, 126.035) 1979 – 1991 4196 150 204
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL (126.034) 1979 – 1991 4196 160 218
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL 1979 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 177 241
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL 1979 – 1991 4196 165 224
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 170 231
MERCEDES-BENZ S-CLASS (W126) 500 SE, SEL (126.036) 1979 – 1991 4973 164 223
MERCEDES-BENZ S-CLASS (W126) 420 SE, SEL 1979 – 1991 4196 170 231
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 170 231
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 195 265
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 180 245
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 178 242
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 200 272
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 205 279
MERCEDES-BENZ S-CLASS Coupe (C126) 560 SEC (126.045) 1980 – 1991 5547 220 300
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC Cat 1980 – 1991 4973 185 252
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 137 186
MERCEDES-BENZ S-CLASS Coupe (C126) 380 SEC 1980 – 1991 3839 116 158
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 165 224
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 160 218
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 150 204
MERCEDES-BENZ S-CLASS Coupe (C126) 380 SEC (126.043) 1980 – 1991 3839 150 204
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 177 241
MERCEDES-BENZ S-CLASS Coupe (C126) 500 SEC (126.044) 1980 – 1991 4973 164 223
MERCEDES-BENZ S-CLASS Coupe (C126) 420 SEC (126.046) 1980 – 1991 4196 170 231
MERCEDES-BENZ S-CLASS Coupe (C126) 380 SEC (126.043) 1980 – 1991 3839 145 197
MERCEDES-BENZ SL (R107) 350 SL (107.043) 1971 – 1989 3499 143 195
MERCEDES-BENZ SL (R107) 280 SL (107.042) 1971 – 1989 2746 136 185
MERCEDES-BENZ SL (R107) 280 SL (107.042) 1971 – 1989 2746 130 177
MERCEDES-BENZ SL (R107) 350 SL (107.043) 1971 – 1989 3499 147 200
MERCEDES-BENZ SL (R107) 380 SL (107.045) 1971 – 1989 3839 116 158
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 119 162
MERCEDES-BENZ SL (R107) 560 SL 1971 – 1989 5547 178 242
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 134 182
MERCEDES-BENZ SL (R107) 560 SL (107.048) 1971 – 1989 5547 169 230
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 177 241
MERCEDES-BENZ SL (R107) 300 SL (107.041) 1971 – 1989 2960 138 188
MERCEDES-BENZ SL (R107) 380 SL (107.045) 1971 – 1989 3818 160 218
MERCEDES-BENZ SL (R107) 380 SL (107.045) 1971 – 1989 3839 150 204
MERCEDES-BENZ SL (R107) 420 SL (107.047) 1971 – 1989 4196 150 204
MERCEDES-BENZ SL (R107) 420 SL (107.047) 1971 – 1989 4196 160 218
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 160 218
MERCEDES-BENZ SL (R107) 450 SL (107.044) 1971 – 1989 4520 165 224
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 164 223
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 170 231
MERCEDES-BENZ SL (R107) 300 SL (107.041) 1971 – 1989 2960 132 180
MERCEDES-BENZ SL (R107) 500 SL (107.046) 1971 – 1989 4973 180 245
MERCEDES-BENZ SL Coupe (C107) 280 SLC (107.022) 1972 – 1985 2746 130 177
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 119 162
MERCEDES-BENZ SL Coupe (C107) 280 SLC (107.022) 1972 – 1985 2746 136 185
MERCEDES-BENZ SL Coupe (C107) 450 SL 1972 – 1985 4520 134 182
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 160 218
MERCEDES-BENZ SL Coupe (C107) 380 SLC 1972 – 1985 3839 116 158
MERCEDES-BENZ SL Coupe (C107) 350 SLC (107.023) 1972 – 1985 3499 143 195
MERCEDES-BENZ SL Coupe (C107) 350 SLC (107.023) 1972 – 1985 3499 147 200
MERCEDES-BENZ SL Coupe (C107) 380 SLC (107.025) 1972 – 1985 3818 160 218
MERCEDES-BENZ SL Coupe (C107) 450 SLC (107.024) 1972 – 1985 4520 165 225
MERCEDES-BENZ SL Coupe (C107) 450 SLC 5.0 (107.026) 1972 – 1985 4973 177 241
