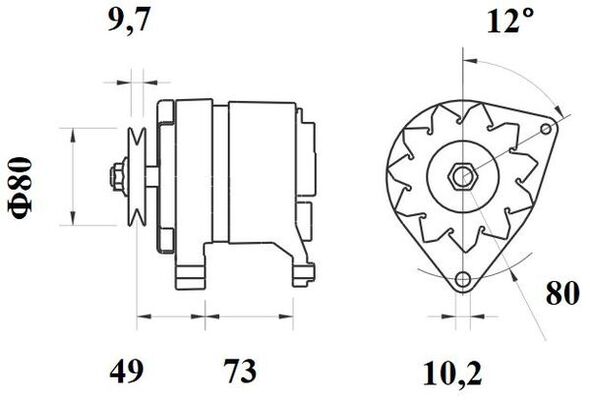

Specifications
| Alternator Charging Current (A) | 33 |
| Belt Pulley Ø (mm) | 80 |
| Bore Diameter (mm) | 10.2 |
| Connector/Clamp W | |
| Distance from belt pulley to alternator (mm) | 49.0 |
| Distance of mounting bores (mm) | 73.0 |
| Dust Cover with dust cover | |
| Mounting Angle (degrees) | 12 |
| Mounting points diameter (mm) | 80.0 |
| Net Weight (g) | 3650 |
| Net Weight (g) | 3682 |
| Number of belts 1 | |
| Number of ribs 1 | |
| Packaging height (cm) | 15.50 |
| Packaging length (cm) | 20.8 |
| Packaging width (cm) | 17.60 |
Alternator Charging Current [A] 33, Belt Pulley Ø [mm] 80, Bore Diameter [mm] 10,2, Connector/Clamp W, Distance from belt pulley to alternator [mm] 49,0, Distance of mounting bores [mm] 73,0, Dust Cover with dust cover, Mounting Angle [degrees] 12, Mounting points diameter [mm] 80,0, Net Weight [g] 3650, Net Weight [g] 3682, Number of belts 1, Number of ribs 1, Packaging height [cm] 15,50, Packaging length [cm] 20,8, Packaging width [cm] 17,60, Pulleys with belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
