Alternator

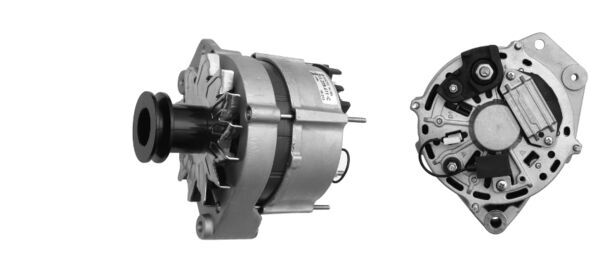

Alternator 1 Alternator 2
Alternator

Alternator

Part No. MG 457 · SKU MG 457-MAHLE
₱29,300.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Alternator Charging Current (A)90

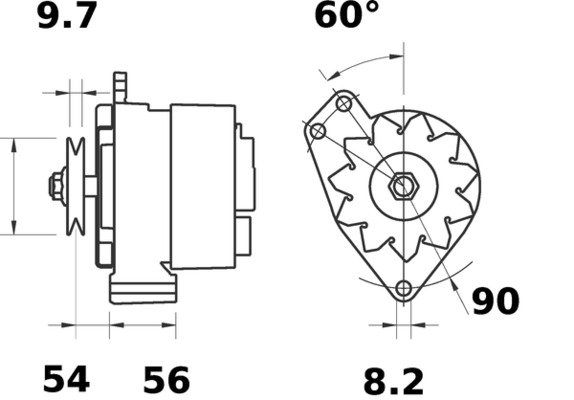

Bore Diameter (mm)8.2
Distance from belt pulley to alternator (mm)54.0
Distance of mounting bores (mm)56.0
Mounting points diameter (mm)90.0
Net Weight (g)4500
Number of belts 1
Packaging height (cm)17.50
Packaging length (cm)24.8
Packaging width (cm)18.60
Pulleys with belt pulley
Rotation Direction Clockwise rotation
Voltage (V)14
Alternator Charging Current [A] 90, Bore Diameter [mm] 8,2, Distance from belt pulley to alternator [mm] 54,0, Distance of mounting bores [mm] 56,0, Mounting points diameter [mm] 90,0, Net Weight [g] 4500, Number of belts 1, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
Fits: AUDI

Supplier Cross-References

MAHLEMG457 SPIDAN3414 FRIESEN9032730 VW25903023 HELLA8EL012426651 BOSCH120469011

Interchangeable Part Numbers

BOSCH0120469011 BOSCH0120469012 BOSCH0986033160 DELCO REMYDRA3160 LUCAS ELECTRICALLRA02613 VALEO436 292 VALEO440 254

OE Numbers — AUDI

026903015B 026903015F 034903015M 035903017AX 049903023A 049903023P 049903027 049903027A 050903015J 053903015D 053903015E 068903018A 26903015B
MakeModelType / Engine YearsCCkWHP
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 118 160
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2144 79 107
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 97 132
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 117 159
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 82 112
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 55 75
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 65 88
AUDI 100 C3 Avant (445, 446) 1.8 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 2.0 1982 – 1990 1994 83 113
AUDI 100 C3 Avant (445, 446) 2.0 E Cat 1982 – 1990 1994 85 115
AUDI 100 C3 Avant (445, 446) 2.1 1982 – 1990 2144 100 136
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 85 115
AUDI 100 C3 Avant (445, 446) 2.2 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.2 Turbo 1982 – 1990 2226 121 165
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 100 136
AUDI 100 C3 Avant (445, 446) 2.0 D 1982 – 1990 1986 51 70
AUDI 100 C3 Avant (445, 446) 2.0 TD 1982 – 1990 1986 64 87
AUDI 100 C3 Avant (445, 446) 2.0 TD 1982 – 1990 1986 74 100
AUDI 100 C3 Avant (445, 446) 2.5 TDI 1982 – 1990 2461 88 120
AUDI 100 C3 Avant (445, 446) 2.3 1982 – 1990 2309 98 133
AUDI 100 C3 Avant (445, 446) 2.2 quattro 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.2 Turbo quattro 1982 – 1990 2226 121 165
AUDI 100 C3 Avant (445, 446) 2.3 E quattro 1982 – 1990 2309 100 136
AUDI 100 C3 Avant (445, 446) 2.3 quattro 1982 – 1990 2309 98 133
AUDI 100 C3 Avant (445, 446) 2.2 E quattro 1982 – 1990 2226 88 120
AUDI 100 C3 Avant (445, 446) 2.4 D 1982 – 1990 2370 60 82
AUDI 100 C3 Avant (445, 446) 1.9 1982 – 1990 1921 74 100
AUDI 100 C3 Avant (445, 446) 1.8 quattro 1982 – 1990 1781 65 88
AUDI 100 C3 Avant (445, 446) 1.8 Cat quattro 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 1.8 quattro 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 2.0 E 1982 – 1990 1994 85 115
AUDI 100 C3 Avant (445, 446) 2.2 Cat 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 2.2 Cat quattro 1982 – 1990 2226 101 137
AUDI 100 C3 Avant (445, 446) 1.8 Cat 1982 – 1990 1781 66 90
AUDI 100 C3 Avant (445, 446) 2.1 1982 – 1990 2144 96 131
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 55 75
AUDI 100 C3 Saloon (443, 444) 2.4 D 1982 – 1991 2370 60 82
AUDI 100 C3 Saloon (443, 444) 2.2 E quattro 1982 – 1991 2226 88 120
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 1.8 quattro 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 2.0 1982 – 1991 1994 85 115
AUDI 100 C3 Saloon (443, 444) 2.2 Cat quattro 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 Cat 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2144 79 107
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2144 96 130
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 117 159
AUDI 100 C3 Saloon (443, 444) 2.1 1982 – 1991 2144 75 102
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 117 159
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 118 160
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 118 160
AUDI 100 C3 Saloon (443, 444) 2.3 1982 – 1991 2309 97 132
AUDI 100 C3 Saloon (443, 444) 2.3 quattro 1982 – 1991 2309 97 132
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2144 118 160
AUDI 100 C3 Saloon (443, 444) 2.0 D 1982 – 1991 1986 66 90
AUDI 100 C3 Saloon (443, 444) 1.8 1982 – 1991 1781 65 88
AUDI 100 C3 Saloon (443, 444) 1.8 Cat 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 1.9 1982 – 1991 1921 74 100
AUDI 100 C3 Saloon (443, 444) 2.0 1982 – 1991 1994 83 113
AUDI 100 C3 Saloon (443, 444) 2.0 Cat 1982 – 1991 1994 85 115
AUDI 100 C3 Saloon (443, 444) 2.1 1982 – 1991 2144 100 136
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 85 115
AUDI 100 C3 Saloon (443, 444) 2.2 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 Turbo 1982 – 1991 2226 121 165
AUDI 100 C3 Saloon (443, 444) 2.3 E 1982 – 1991 2309 100 136
AUDI 100 C3 Saloon (443, 444) 2.0 D 1982 – 1991 1986 51 70
AUDI 100 C3 Saloon (443, 444) 2.0 D Turbo 1982 – 1991 1986 64 87
AUDI 100 C3 Saloon (443, 444) 2.0 D Turbo 1982 – 1991 1986 74 100
AUDI 100 C3 Saloon (443, 444) 2.5 TDI 1982 – 1991 2461 88 120
AUDI 100 C3 Saloon (443, 444) 2.3 E 1982 – 1991 2309 98 133
AUDI 100 C3 Saloon (443, 444) 1.8 quattro 1982 – 1991 1781 65 88
AUDI 100 C3 Saloon (443, 444) 1.8 Cat quattro 1982 – 1991 1781 66 90
AUDI 100 C3 Saloon (443, 444) 2.2 quattro 1982 – 1991 2226 101 137
AUDI 100 C3 Saloon (443, 444) 2.2 E Turbo quattro 1982 – 1991 2226 121 165
AUDI 100 C3 Saloon (443, 444) 2.3 E quattro 1982 – 1991 2309 100 136
AUDI 100 C3 Saloon (443, 444) 2.3 quattro 1982 – 1991 2309 98 133
AUDI 100 C4 Avant (4A5) 2.5 TDI 1990 – 1994 2461 85 115
AUDI 100 C4 Avant (4A5) 2.0 E 1990 – 1994 1984 74 100
AUDI 100 C4 Avant (4A5) 2.0 E 1990 – 1994 1984 85 115
AUDI 100 C4 Avant (4A5) S4 Turbo quattro 1990 – 1994 2226 169 230
AUDI 100 C4 Avant (4A5) 2.6 1990 – 1994 2598 110 150
AUDI 100 C4 Avant (4A5) 2.3 E 1990 – 1994 2309 98 133
AUDI 100 C4 Avant (4A5) 2.8 E 1990 – 1994 2771 128 174
AUDI 100 C4 Avant (4A5) 2.3 E quattro 1990 – 1994 2309 98 133
AUDI 100 C4 Avant (4A5) 2.6 quattro 1990 – 1994 2598 110 150
AUDI 100 C4 Avant (4A5) 2.8 E quattro 1990 – 1994 2771 128 174
AUDI 100 C4 Avant (4A5) S4 V8 quattro 1990 – 1994 4172 206 280
AUDI 100 C4 Avant (4A5) 2.0 E quattro 1990 – 1994 1984 85 115
AUDI 100 C4 Avant (4A5) 2.4 D 1990 – 1994 2370 60 82
AUDI 100 C4 Avant (4A5) 2.6 1990 – 1994 2598 102 139
AUDI 100 C4 Avant (4A5) 2.0 E 16V 1990 – 1994 1984 103 140
AUDI 100 C4 Avant (4A5) 2.0 E 16V quattro 1990 – 1994 1984 103 140
AUDI 100 C4 Avant (4A5) 2.6 E quattro 1990 – 1994 2598 102 139
AUDI 100 C4 Saloon (4A2) S4 V8 quattro 1990 – 1996 4172 206 280
AUDI 100 C4 Saloon (4A2) 2.0 E quattro 1990 – 1996 1984 85 115
AUDI 100 C4 Saloon (4A2) 2.6 1990 – 1996 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.0 E 16V 1990 – 1996 1984 103 140
AUDI 100 C4 Saloon (4A2) 2.0 E 16V quattro 1990 – 1996 1984 103 140
AUDI 100 C4 Saloon (4A2) 2.4 D 1990 – 1996 2370 60 82
AUDI 100 C4 Saloon (4A2) 2.5 TDI 1990 – 1996 2461 85 115
AUDI 100 C4 Saloon (4A2) 2.0 1990 – 1996 1984 74 100
AUDI 100 C4 Saloon (4A2) 2.0 E 1990 – 1996 1984 85 115
AUDI 100 C4 Saloon (4A2) 2.3 E 1990 – 1996 2309 98 133
AUDI 100 C4 Saloon (4A2) 2.6 1990 – 1996 2598 110 150
AUDI 100 C4 Saloon (4A2) 2.8 E 1990 – 1996 2771 128 174
AUDI 100 C4 Saloon (4A2) S4 Turbo quattro 1990 – 1996 2226 169 230
AUDI 100 C4 Saloon (4A2) 2.3 E quattro 1990 – 1996 2309 98 133
AUDI 100 C4 Saloon (4A2) 2.6 quattro 1990 – 1996 2598 110 150
AUDI 100 C4 Saloon (4A2) 2.8 E quattro 1990 – 1996 2771 128 174
AUDI 100 C4 Saloon (4A2) 2.6 quattro 1990 – 1996 2598 102 139
AUDI 200 C3 Avant (447, 448) 2.1 Turbo quattro 1983 – 1991 2144 134 182
AUDI 200 C3 Avant (447, 448) 2.2 Turbo quattro 1983 – 1991 2226 121 165
AUDI 200 C3 Avant (447, 448) 2.2 20V Turbo quattro 1983 – 1991 2226 162 220
AUDI 200 C3 Avant (447, 448) 2.2 Turbo quattro 1983 – 1991 2226 147 200
AUDI 200 C3 Avant (447, 448) 2.3 1983 – 1991 2309 100 136
AUDI 200 C3 Avant (447, 448) 2.2 Turbo 1983 – 1991 2226 121 165
AUDI 200 C3 Saloon (447, 448) 2.2 Turbo quattro 1983 – 1991 2226 147 200
AUDI 200 C3 Saloon (447, 448) 2.2 Turbo 1983 – 1991 2226 140 190
AUDI 200 C3 Saloon (447, 448) 2.2 Turbo 1983 – 1991 2226 147 200
AUDI 200 C3 Saloon (447, 448) 2.3 1983 – 1991 2309 100 136
AUDI 200 C3 Saloon (447, 448) 2.1 5E 1983 – 1991 2144 100 136
AUDI 200 C3 Saloon (447, 448) 2.1 Turbo 1983 – 1991 2144 134 182
AUDI 200 C3 Saloon (447, 448) 2.2 1983 – 1991 2226 101 137
AUDI 200 C3 Saloon (447, 448) 2.2 Turbo 1983 – 1991 2226 121 165
AUDI 200 C3 Saloon (447, 448) 2.1 Turbo quattro 1983 – 1991 2144 134 182
AUDI 200 C3 Saloon (447, 448) 2.2 Turbo quattro 1983 – 1991 2226 121 165
AUDI 200 C3 Saloon (447, 448) 2.2 20V Turbo quattro 1983 – 1991 2226 162 220
AUDI 80 B4 Saloon (8C2) 1.9 TD 1991 – 1995 1896 55 75
AUDI 80 B4 Saloon (8C2) 1.9 TDI 1991 – 1995 1896 66 90
AUDI 80 B4 Saloon (8C2) 1.6 1991 – 1995 1595 52 71
AUDI 80 B4 Saloon (8C2) 1.6 E 1991 – 1995 1595 74 101
AUDI 80 B4 Saloon (8C2) 2.0 1991 – 1995 1984 66 90
AUDI 80 B4 Saloon (8C2) 2.0 E 1991 – 1995 1984 85 115
AUDI 80 B4 Saloon (8C2) 2.0 E 16V 1991 – 1995 1984 103 140
AUDI 80 B4 Saloon (8C2) 2.3 E 1991 – 1995 2309 98 133
AUDI 80 B4 Saloon (8C2) 2.6 1991 – 1995 2598 110 150
AUDI 80 B4 Saloon (8C2) 2.8 1991 – 1995 2771 128 174
AUDI 80 B4 Saloon (8C2) 2.0 E 16V quattro 1991 – 1995 1984 103 140
AUDI 80 B4 Saloon (8C2) 2.0 E quattro 1991 – 1995 1984 85 115
AUDI 80 B4 Saloon (8C2) S2 quattro 1991 – 1995 2226 169 230
AUDI 80 B4 Saloon (8C2) 2.3 E quattro 1991 – 1995 2309 98 133
AUDI 80 B4 Saloon (8C2) 2.6 quattro 1991 – 1995 2598 110 150
AUDI 80 B4 Saloon (8C2) 2.8 quattro 1991 – 1995 2771 128 174
AUDI 80 B4 Saloon (8C2) 2.0 quattro 1991 – 1995 1984 79 107
AUDI 80 B4 Saloon (8C2) 2.0 E 16V 1991 – 1995 1984 101 137
AUDI A6 C4 (4A2) 1.9 TDI 1994 – 1998 1896 66 90
AUDI A6 C4 (4A2) 2.5 TDI 1994 – 1998 2461 103 140
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 74 100
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 85 115
AUDI A6 C4 (4A2) 2.0 16V 1994 – 1998 1984 103 140
AUDI A6 C4 (4A2) 2.6 1994 – 1998 2598 110 150
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 128 174
AUDI A6 C4 (4A2) 2.5 TDI 1994 – 1998 2461 85 116
AUDI A6 C4 (4A2) 2.0 16V quattro 1994 – 1998 1984 103 140
AUDI A6 C4 (4A2) 2.6 quattro 1994 – 1998 2598 110 150
AUDI A6 C4 (4A2) 2.8 quattro 1994 – 1998 2771 128 174
AUDI A6 C4 (4A2) S6 Turbo quattro 1994 – 1998 2226 169 230
AUDI A6 C4 (4A2) S6 4.2 quattro 1994 – 1998 4172 213 290
AUDI A6 C4 (4A2) 2.5 TDI quattro 1994 – 1998 2461 103 140
AUDI A6 C4 (4A2) 1.8 1994 – 1998 1781 92 125
AUDI A6 C4 (4A2) 1.8 quattro 1994 – 1998 1781 92 125
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 142 193
AUDI A6 C4 (4A2) 2.8 quattro 1994 – 1998 2771 142 193
AUDI A6 C4 (4A2) S6 Plus quattro 1994 – 1998 4172 240 326
AUDI A6 C4 (4A2) 2.3 1994 – 1998 2309 98 133
AUDI A6 C4 (4A2) 2.3 quattro 1994 – 1998 2309 98 133
AUDI A6 C4 (4A2) 2.6 1994 – 1998 2598 102 139
AUDI A6 C4 (4A2) 2.4 1994 – 1998 2393 110 150
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 79 107
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 120 163
AUDI A6 C4 Avant (4A5) 1.9 TDI 1994 – 1998 1896 66 90
AUDI A6 C4 Avant (4A5) 2.5 TDI 1994 – 1998 2461 103 140
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 74 100
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 85 115
AUDI A6 C4 Avant (4A5) 2.0 16V 1994 – 1998 1984 103 140
AUDI A6 C4 Avant (4A5) 2.6 1994 – 1998 2598 110 150
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 128 174
AUDI A6 C4 Avant (4A5) 2.5 TDI 1994 – 1998 2461 85 116
AUDI A6 C4 Avant (4A5) 2.0 16V quattro 1994 – 1998 1984 103 140
AUDI A6 C4 Avant (4A5) S6 4.2 quattro 1994 – 1998 4172 213 290
AUDI A6 C4 Avant (4A5) 2.8 quattro 1994 – 1998 2771 128 174
AUDI A6 C4 Avant (4A5) S6 Turbo quattro 1994 – 1998 2226 169 230
AUDI A6 C4 Avant (4A5) 2.5 TDI quattro 1994 – 1998 2461 103 140
AUDI A6 C4 Avant (4A5) 1.8 1994 – 1998 1781 92 125
AUDI A6 C4 Avant (4A5) 1.8 quattro 1994 – 1998 1781 92 125
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 142 193
AUDI A6 C4 Avant (4A5) 2.8 quattro 1994 – 1998 2771 142 193
AUDI A6 C4 Avant (4A5) S6 Plus quattro 1994 – 1998 4172 240 326
AUDI A6 C4 Avant (4A5) 2.3 1994 – 1998 2309 98 133
AUDI A6 C4 Avant (4A5) 2.3 quattro 1994 – 1998 2309 98 133
AUDI A6 C4 Avant (4A5) 2.6 quattro 1994 – 1998 2598 110 150
AUDI A6 C4 Avant (4A5) 2.6 1994 – 1998 2598 102 139
AUDI A6 C4 Avant (4A5) 2.4 1994 – 1998 2393 110 150
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 79 107
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 120 163
AUDI CABRIOLET B3 (8G7) 2.0 16V 1991 – 2000 1984 103 140
AUDI CABRIOLET B3 (8G7) 1.9 TDI 1991 – 2000 1896 66 90
AUDI CABRIOLET B3 (8G7) 1.8 1991 – 2000 1781 92 125
AUDI CABRIOLET B3 (8G7) 2.0 E 1991 – 2000 1984 85 115
AUDI CABRIOLET B3 (8G7) 2.3 E 1991 – 2000 2309 98 133
AUDI CABRIOLET B3 (8G7) 2.6 1991 – 2000 2598 110 150
AUDI CABRIOLET B3 (8G7) 2.8 1991 – 2000 2771 128 174
AUDI COUPE B3 (89, 8B3) 2.3 1988 – 1996 2309 100 136
AUDI COUPE B3 (89, 8B3) 2.0 1988 – 1996 1984 85 115
AUDI COUPE B3 (89, 8B3) 2.0 16 V 1988 – 1996 1984 103 140
AUDI COUPE B3 (89, 8B3) 2.3 1988 – 1996 2309 98 133
AUDI COUPE B3 (89, 8B3) 2.3 20V 1988 – 1996 2309 123 167
AUDI COUPE B3 (89, 8B3) 2.6 1988 – 1996 2598 110 150
AUDI COUPE B3 (89, 8B3) 2.8 1988 – 1996 2771 128 174
AUDI COUPE B3 (89, 8B3) 2.3 quattro 1988 – 1996 2309 100 136
AUDI COUPE B3 (89, 8B3) 2.3 20V quattro 1988 – 1996 2309 125 170
AUDI COUPE B3 (89, 8B3) S2 quattro 1988 – 1996 2226 162 220
AUDI COUPE B3 (89, 8B3) S2 quattro 1988 – 1996 2226 169 230
AUDI COUPE B3 (89, 8B3) 2.3 quattro 1988 – 1996 2309 98 134
AUDI COUPE B3 (89, 8B3) 2.3 20V quattro 1988 – 1996 2309 123 167
AUDI COUPE B3 (89, 8B3) 2.6 quattro 1988 – 1996 2598 110 150
AUDI COUPE B3 (89, 8B3) 2.8 quattro 1988 – 1996 2771 128 174
AUDI COUPE B3 (89, 8B3) 2.3 20V 1988 – 1996 2309 125 170
AUDI COUPE B3 (89, 8B3) 1.8 1988 – 1996 1781 82 112
AUDI COUPE B3 (89, 8B3) 2.2 quattro 1988 – 1996 2226 100 136
AUDI COUPE B3 (89, 8B3) 2.0 16 V 1988 – 1996 1984 101 137
AUDI COUPE B3 (89, 8B3) 2.0 20 V quattro 1988 – 1996 1994 118 160
AUDI COUPE B3 (89, 8B3) 2.0 20 V 1988 – 1996 1994 118 160
AUDI COUPE B3 (89, 8B3) 2.0 1988 – 1996 1984 82 112
AUDI COUPE B3 (89, 8B3) 2.0 1988 – 1996 1984 83 113
AUDI COUPE B3 (89, 8B3) 2.3 1988 – 1996 2309 97 132
AUDI COUPE B3 (89, 8B3) 2.2 1988 – 1996 2226 100 136
Alternator ₱29,300
Talk to Expert
