Specifications
| Alternator Charging Current (A) | 33 |

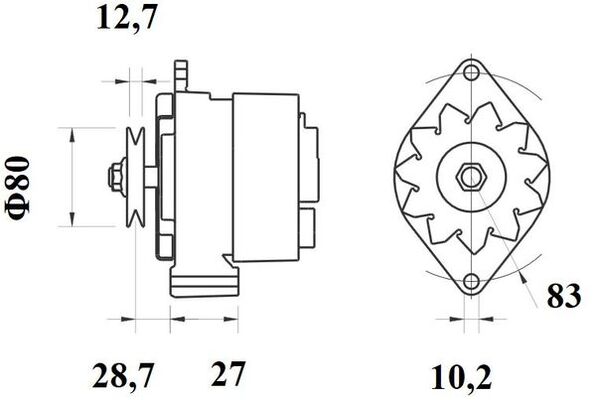

| Belt Pulley Ø (mm) | 80 |
| Bore Diameter (mm) | 10.2 |
| Distance from belt pulley to alternator (mm) | 28.7 |
| Distance of mounting bores (mm) | 27.0 |
| Dust Cover with dust cover | |
| Mounting points diameter (mm) | 83.0 |
| Net Weight (g) | 3480 |
| Net Weight (g) | 3555 |
| Number of belts 1 | |
| Number of ribs 1 | |
| Packaging height (cm) | 15.50 |
| Packaging length (cm) | 20.8 |
| Packaging width (cm) | 17.60 |
| Pulleys with belt pulley | |
| Rotation Direction Clockwise rotation | |
Alternator Charging Current [A] 33, Belt Pulley Ø [mm] 80, Bore Diameter [mm] 10,2, Distance from belt pulley to alternator [mm] 28,7, Distance of mounting bores [mm] 27,0, Dust Cover with dust cover, Mounting points diameter [mm] 83,0, Net Weight [g] 3480, Net Weight [g] 3555, Number of belts 1, Number of ribs 1, Packaging height [cm] 15,50, Packaging length [cm] 20,8, Packaging width [cm] 17,60, Pulleys with belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
