Specifications
| Alternator Charging Current (A) | 55 |

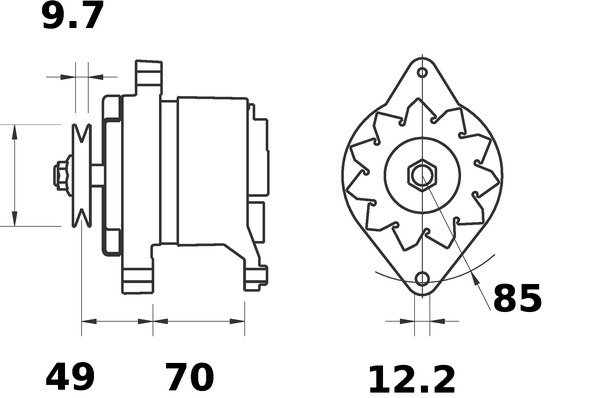

| Bore Diameter (mm) | 12.2 |
| Distance from belt pulley to alternator (mm) | 49.0 |
| Distance of mounting bores (mm) | 70.0 |
| Mounting points diameter (mm) | 85.0 |
| Net Weight (g) | 5000 |
| Number of belts 1 | |
| Packaging height (cm) | 15.50 |
| Packaging length (cm) | 20.8 |
| Packaging width (cm) | 17.60 |
| Pulleys with belt pulley | |
| Rotation Direction Clockwise rotation | |
| Voltage (V) | 14 |
Alternator Charging Current [A] 55, Bore Diameter [mm] 12,2, Distance from belt pulley to alternator [mm] 49,0, Distance of mounting bores [mm] 70,0, Mounting points diameter [mm] 85,0, Net Weight [g] 5000, Number of belts 1, Packaging height [cm] 15,50, Packaging length [cm] 20,8, Packaging width [cm] 17,60, Pulleys with belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
