Specifications

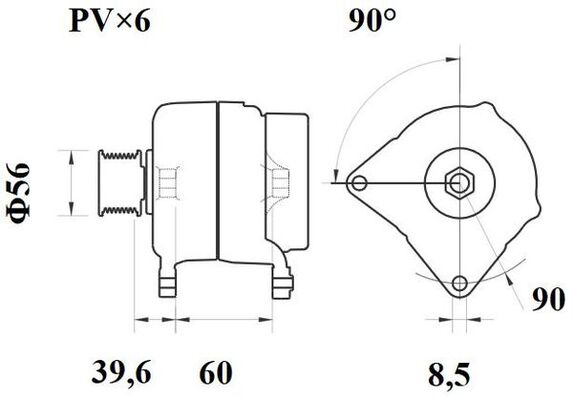

| Alternator Charging Current (A) | 50 |
| Belt Pulley Ø (mm) | 56 |
| Bore Diameter (mm) | 8.5 |
| Distance from belt pulley to alternator (mm) | 39.6 |
| Distance of mounting bores (mm) | 60.0 |
| Dust Cover with dust cover | |
| Mounting points diameter (mm) | 90.0 |
| Net Weight (g) | 5971 |
| Number of belts 6 | |
| Number of mounting bores 2 | |
| Number of ribs 6 | |
| Packaging height (cm) | 20.50 |
| Packaging length (cm) | 30.5 |
| Packaging width (cm) | 23.00 |
| Pulleys with V-ribbed belt pulley | |
| Rotation Direction Clockwise rotation | |
Alternator Charging Current [A] 50, Belt Pulley Ø [mm] 56, Bore Diameter [mm] 8,5, Distance from belt pulley to alternator [mm] 39,6, Distance of mounting bores [mm] 60,0, Dust Cover with dust cover, Mounting points diameter [mm] 90,0, Net Weight [g] 5971, Number of belts 6, Number of mounting bores 2, Number of ribs 6, Packaging height [cm] 20,50, Packaging length [cm] 30,5, Packaging width [cm] 23,00, Pulleys with V-ribbed belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 28
