Specifications
| Alternator Charging Current (A) | 55 |

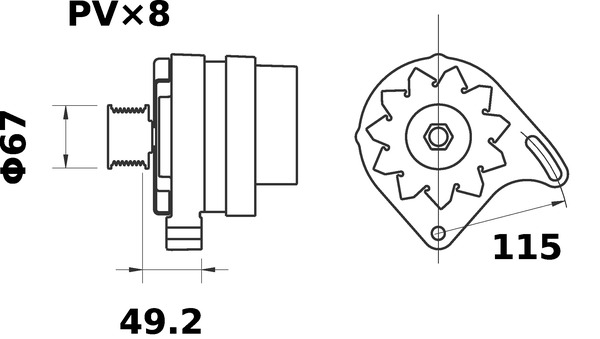

| Belt Pulley Ø (mm) | 67 |
| Bore Diameter (mm) | 10.2 |
| Connector/Clamp W | |
| Distance from belt pulley to alternator (mm) | 49.2 |
| Distance of mounting bores (mm) | 32 |
| Mounting points diameter (mm) | 115.0 |
| Net Weight (g) | 4899 |
| Number of ribs 8 | |
| Packaging height (cm) | 17.50 |
| Packaging length (cm) | 24.8 |
| Packaging width (cm) | 18.60 |
| Pulleys with V-ribbed belt pulley | |
| Rotation Direction Clockwise rotation | |
| Voltage (V) | 28 |
Alternator Charging Current [A] 55, Belt Pulley Ø [mm] 67, Bore Diameter [mm] 10,2, Connector/Clamp W, Distance from belt pulley to alternator [mm] 49,2, Distance of mounting bores [mm] 32, Mounting points diameter [mm] 115,0, Net Weight [g] 4899, Number of ribs 8, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with V-ribbed belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 28
