Alternator

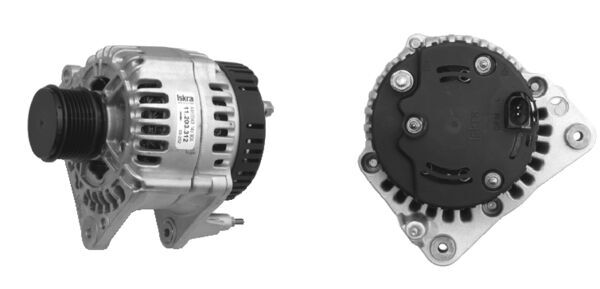

Alternator 1 Alternator 2 Alternator 3
Alternator

Alternator

Part No. MG 555 · SKU MG 555-MAHLE
₱4,300.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

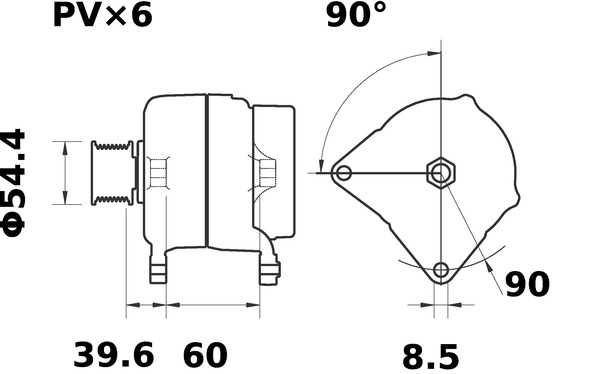

Specifications

Alternator Charging Current (A)90
Belt Pulley Ø (mm)55
Bore Diameter (mm)8.5
Distance from belt pulley to alternator (mm)39.6
Distance of mounting bores (mm)60.0
Dust Cover with dust cover
Mounting points diameter (mm)90.0
Net Weight (g)6064
Number of belts 6
Number of mounting bores 2
Number of ribs 6
Packaging height (cm)17.50
Packaging length (cm)24.8
Packaging width (cm)18.60
Pulleys with freewheel belt pulley
Rotation Direction Clockwise rotation
Alternator Charging Current [A] 90, Belt Pulley Ø [mm] 55, Bore Diameter [mm] 8,5, Distance from belt pulley to alternator [mm] 39,6, Distance of mounting bores [mm] 60,0, Dust Cover with dust cover, Mounting points diameter [mm] 90,0, Net Weight [g] 6064, Number of belts 6, Number of mounting bores 2, Number of ribs 6, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with freewheel belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
Fits: AUDI, FORD, SEAT, SKODA, VW

Supplier Cross-References

MAHLEMG555 DAYCOALP2334 CONTINENTAL CTAMAP9001 GATESOAP7013 HUTCHINSONDB0251 SNRGA75405

Interchangeable Part Numbers

BOM-Prestolite20110474 BOSCH0124325001 BOSCH0124325088 BOSCH0124325101 BOSCH0124325131 BOSCH0124325149 BOSCH0986041490 BOSCH0986047250 DELCO REMYDRB1490 DELCO REMYDRB1490X LUCAS ELECTRICALLRB00474 MAGNETI MARELLI 633 53325 MAGNETI MARELLI63353325 MAGNETI MARELLI MSN2037 MAGNETI MARELLIMSN2037 VALEO 2 542245 VALEO2542245 VALEO 437400 VALEO437400 VALEO 440230 VALEO440230 VALEO SG 9B015 VALEOSG9B015 VALEO SG 9B078 VALEOSG9B078

OE Numbers — AUDI

038903018P 038903018PX 038903023L 038903023N 038903023R 038903024A 038903024D 074903026 38903023L 38903023R

OE Numbers — FORD 1 000

711

OE Numbers — FORD

1000711 1253623 1100711 3M2110300AA 6M2110346BA 96AG14K011ABA 98VW10300CA EGL1318

OE Numbers — FORD 1 253

623

OE Numbers — FORD 98 VW 10300

CA

OE Numbers — VW 038 903 018

P

OE Numbers — VW

038903024E

OE Numbers — VW 038 903 023

L N R

OE Numbers — VW 038 903 024

A D

OE Numbers — VW 074 903

026
MakeModelType / Engine YearsCCkWHP
AUDI A2 (8Z0) 1.4 TDI 2000 – 2005 1422 55 75
AUDI A2 (8Z0) 1.4 2000 – 2005 1390 55 75
AUDI A2 (8Z0) 1.2 TDI 2000 – 2005 1191 45 61
AUDI A2 (8Z0) 1.6 FSI 2000 – 2005 1598 81 110
AUDI A2 (8Z0) 1.4 TDI 2000 – 2005 1422 66 90
AUDI A3 (8L1) 1.6 1996 – 2006 1595 74 101
AUDI A3 (8L1) 1.8 1996 – 2006 1781 92 125
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 110 150
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 66 90
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 81 110
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 132 180
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 154 210
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 110 150
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 132 180
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.6 1996 – 2006 1595 75 102
AUDI A3 (8L1) 1.9 TDI quattro 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 74 100
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 165 224
AUDI A3 (8L1) 1.6 1996 – 2006 1598 74 101
AUDI A3 Convertible (8P7) 2.0 TFSI 2008 – 2013 1984 147 200
AUDI A3 Convertible (8P7) 2.0 TDI 2008 – 2013 1968 100 136
AUDI A3 Convertible (8P7) 1.6 TDI 2008 – 2013 1598 77 105
AUDI A3 Convertible (8P7) 1.6 2008 – 2013 1595 75 102
AUDI A3 Convertible (8P7) 1.2 TFSI 2008 – 2013 1197 77 105
AUDI A3 Convertible (8P7) 2.0 TDI 2008 – 2013 1968 103 140
AUDI A3 Convertible (8P7) 1.9 TDI 2008 – 2013 1896 77 105
AUDI A3 Convertible (8P7) 1.8 TFSI 2008 – 2013 1798 118 160
AUDI A3 Convertible (8P7) 1.4 TFSI 2008 – 2013 1390 92 125
AUDI A3 Sportback (8PA) 1.6 E-Power 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) RS3 quattro 2004 – 2015 2480 250 340
AUDI A3 Sportback (8PA) 1.6 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) 1.9 TDI 2004 – 2015 1896 77 105
AUDI A3 Sportback (8PA) 1.6 FSI 2004 – 2015 1598 85 115
AUDI A3 Sportback (8PA) 2.0 FSI 2004 – 2015 1984 110 150
AUDI A3 Sportback (8PA) 3.2 V6 quattro 2004 – 2015 3189 184 250
AUDI A3 Sportback (8PA) 2.0 TDI 16V 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TFSI 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 2.0 TFSI quattro 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 100 136
AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 66 90
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 1.8 TFSI quattro 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 188 256
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 77 105
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 195 265
AUDI A3 Sportback (8PA) 1.2 TSI 2004 – 2015 1197 77 105
AUDI A3 Sportback (8PA) 1.4 TFSI 2004 – 2015 1390 92 125
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 104 141
AUDI A3 Sportback (8PA) 1.8 FSI 2004 – 2015 1781 110 150
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 120 163
AUDI A3 Sportback (8PA) 1.8 TFSI 2004 – 2015 1798 118 160
AUDI A4 B5 (8D2) 2.8 1994 – 2001 2771 140 190
AUDI A4 B5 (8D2) 2.7 Turbo quattro 1994 – 2001 2671 169 230
AUDI A4 B5 (8D2) 2.6 1994 – 2001 2598 102 139
AUDI A4 B5 (8D2) 1.8 T quattro 1994 – 2001 1781 125 170
AUDI A4 B5 (8D2) 2.4 1994 – 2001 2393 110 150
AUDI A4 B5 (8D2) 2.8 quattro 1994 – 2001 2771 140 190
AUDI A4 B5 (8D2) S4 quattro 1994 – 2001 2671 187 254
AUDI A4 B5 (8D2) 1.6 1994 – 2001 1595 74 100
AUDI A4 B5 (8D2) 1.8 1994 – 2001 1781 92 125
AUDI A4 B5 (8D2) 1.8 T 1994 – 2001 1781 110 150
AUDI A4 B5 (8D2) 2.6 1994 – 2001 2598 110 150
AUDI A4 B5 (8D2) 2.8 1994 – 2001 2771 128 174
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 66 90
AUDI A4 B5 (8D2) 1.8 quattro 1994 – 2001 1781 92 125
AUDI A4 B5 (8D2) 1.8 T quattro 1994 – 2001 1781 110 150
AUDI A4 B5 (8D2) 2.6 quattro 1994 – 2001 2598 110 150
AUDI A4 B5 (8D2) 2.8 quattro 1994 – 2001 2771 128 174
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 81 110
AUDI A4 B5 (8D2) 2.8 1994 – 2001 2771 142 193
AUDI A4 B5 (8D2) 2.8 quattro 1994 – 2001 2771 142 193
AUDI A4 B5 (8D2) 1.9 TDI quattro 1994 – 2001 1896 81 110
AUDI A4 B5 (8D2) 2.4 1994 – 2001 2393 121 165
AUDI A4 B5 (8D2) 2.4 quattro 1994 – 2001 2393 121 165
AUDI A4 B5 (8D2) S4 quattro 1994 – 2001 2671 195 265
AUDI A4 B5 (8D2) 2.5 TDI 1994 – 2001 2496 110 150
AUDI A4 B5 (8D2) 2.5 TDI quattro 1994 – 2001 2496 110 150
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 85 116
AUDI A4 B5 (8D2) 1.8 T quattro 1994 – 2001 1781 132 180
AUDI A4 B5 (8D2) 1.8 T 1994 – 2001 1781 132 180
AUDI A4 B5 (8D2) 1.9 TDI quattro 1994 – 2001 1896 85 116
AUDI A4 B5 (8D2) 1.9 TDI 1994 – 2001 1896 55 75
AUDI A4 B5 (8D2) 1.8 1994 – 2001 1781 85 115
AUDI A4 B5 (8D2) 1.8 quattro 1994 – 2001 1781 85 115
AUDI A4 B5 (8D2) 1.6 1994 – 2001 1595 75 102
AUDI A4 B5 (8D2) 2.4 1994 – 2001 2393 120 163
AUDI A4 B5 (8D2) 2.4 quattro 1994 – 2001 2393 120 163
AUDI A4 B5 Avant (8D5) 1.6 1994 – 2002 1595 74 100
AUDI A4 B5 Avant (8D5) 1.8 1994 – 2002 1781 92 125
AUDI A4 B5 Avant (8D5) 1.8 T 1994 – 2002 1781 110 150
AUDI A4 B5 Avant (8D5) 2.6 1994 – 2002 2598 110 150
AUDI A4 B5 Avant (8D5) 1.9 TDI 1994 – 2002 1896 66 90
AUDI A4 B5 Avant (8D5) 1.9 TDI 1994 – 2002 1896 81 110
AUDI A4 B5 Avant (8D5) 1.8 quattro 1994 – 2002 1781 92 125
AUDI A4 B5 Avant (8D5) 1.8 T quattro 1994 – 2002 1781 110 150
AUDI A4 B5 Avant (8D5) 2.6 quattro 1994 – 2002 2598 110 150
AUDI A4 B5 Avant (8D5) 2.8 1994 – 2002 2771 142 193
AUDI A4 B5 Avant (8D5) 2.8 quattro 1994 – 2002 2771 142 193
AUDI A4 B5 Avant (8D5) 1.9 TDI quattro 1994 – 2002 1896 81 110
AUDI A4 B5 Avant (8D5) 2.4 1994 – 2002 2393 121 165
AUDI A4 B5 Avant (8D5) 2.4 quattro 1994 – 2002 2393 121 165
AUDI A4 B5 Avant (8D5) S4 quattro 1994 – 2002 2671 195 265
AUDI A4 B5 Avant (8D5) 2.5 TDI 1994 – 2002 2496 110 150
AUDI A4 B5 Avant (8D5) 2.5 TDI quattro 1994 – 2002 2496 110 150
AUDI A4 B5 Avant (8D5) 1.9 TDI 1994 – 2002 1896 85 115
AUDI A4 B5 Avant (8D5) 1.8 T quattro 1994 – 2002 1781 132 180
AUDI A4 B5 Avant (8D5) 1.8 T 1994 – 2002 1781 132 180
AUDI A4 B5 Avant (8D5) 1.9 TDI quattro 1994 – 2002 1896 85 115
AUDI A4 B5 Avant (8D5) RS4 quattro 1994 – 2002 2671 280 380
AUDI A4 B5 Avant (8D5) 1.8 1994 – 2002 1781 85 115
AUDI A4 B5 Avant (8D5) 1.8 quattro 1994 – 2002 1781 85 115
AUDI A4 B5 Avant (8D5) 1.6 1994 – 2002 1595 75 102
AUDI A4 B5 Avant (8D5) 2.4 1994 – 2002 2393 120 163
AUDI A4 B5 Avant (8D5) 2.4 quattro 1994 – 2002 2393 120 163
AUDI A4 B5 Avant (8D5) 1.9 Hybrid 1994 – 2002 1896 66 90
AUDI A4 B5 Avant (8D5) 2.8 quattro 1994 – 2002 2771 140 190
AUDI A4 B5 Avant (8D5) S4 quattro 1994 – 2002 2671 185 252
AUDI A4 B5 Avant (8D5) 2.8 1994 – 2002 2771 140 190
AUDI A4 B5 Avant (8D5) 2.4 1994 – 2002 2393 110 150
AUDI TT (8J3) 2.0 TFSI 2006 – 2015 1984 149 203
AUDI TT (8J3) 45 TFSI 2006 – 2015 1984 155 211
AUDI TT (8J3) 2.0 TDI quattro 2006 – 2015 1968 125 170
AUDI TT (8J3) 45 TFSI quattro 2006 – 2015 1984 155 211
AUDI TT (8J3) 2.5 RS quattro 2006 – 2015 2480 250 340
AUDI TT (8J3) 2.0 TFSI quattro 2006 – 2015 1984 147 200
AUDI TT (8J3) 2.0 TTS quattro 2006 – 2015 1984 195 265
AUDI TT (8J3) 1.8 TFSI 2006 – 2015 1798 118 160
AUDI TT (8J3) 2.0 TTS quattro 2006 – 2015 1984 200 272
AUDI TT (8J3) 3.2 V6 quattro 2006 – 2015 3189 184 250
AUDI TT (8J3) 2.0 TFSI 2006 – 2015 1984 147 200
AUDI TT (8J3) 2.0 TFSI 2006 – 2015 1984 155 211
AUDI TT (8J3) 2.0 TFSI quattro 2006 – 2015 1984 155 211
AUDI TT (8J3) 2.5 RS quattro 2006 – 2015 2480 265 360
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 132 180
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 132 180
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 165 224
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 110 150
AUDI TT (8N3) 3.2 VR6 quattro 1998 – 2007 3189 184 250
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 180 245
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 120 163
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 140 190
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 140 190
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 168 228
AUDI TT (8N3) 1.8 T 1998 – 2007 1781 134 182
AUDI TT (8N3) 1.8 T quattro 1998 – 2007 1781 134 182
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 140 190
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 168 228
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 134 182
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 134 182
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 120 163
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 140 190
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 132 180
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 132 180
AUDI TT Roadster (8N9) 1.8 T quattro 1999 – 2007 1781 165 224
AUDI TT Roadster (8N9) 1.8 T 1999 – 2007 1781 110 150
AUDI TT Roadster (8N9) 3.2 VR6 quattro 1999 – 2007 3189 184 250
