Specifications

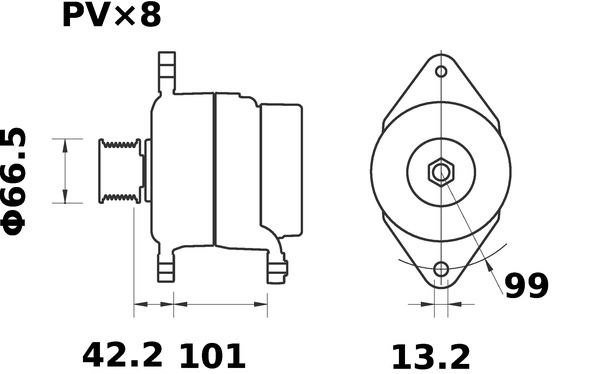

| Alternator Charging Current (A) | 150 |
| Belt Pulley Ø (mm) | 67 |
| Bore Diameter (mm) | 13.2 |
| Distance from belt pulley to alternator (mm) | 42.2 |
| Distance of mounting bores (mm) | 101.0 |
| Mounting points diameter (mm) | 99.0 |
| Net Weight (g) | 8242 |
| Number of belts 8 | |
| Number of grooves 8 | |
| Number of ribs 8 | |
| Packaging height (cm) | 20.50 |
| Packaging length (cm) | 30.5 |
| Packaging width (cm) | 23.00 |
| Pulleys with V-ribbed belt pulley | |
| Rotation Direction Clockwise rotation | |
| Voltage (V) | 14 |
Alternator Charging Current [A] 150, Belt Pulley Ø [mm] 67, Bore Diameter [mm] 13,2, Distance from belt pulley to alternator [mm] 42,2, Distance of mounting bores [mm] 101,0, Mounting points diameter [mm] 99,0, Net Weight [g] 8242, Number of belts 8, Number of grooves 8, Number of ribs 8, Packaging height [cm] 20,50, Packaging length [cm] 30,5, Packaging width [cm] 23,00, Pulleys with V-ribbed belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
