Specifications
| Alternator Charging Current (A) | 270 |

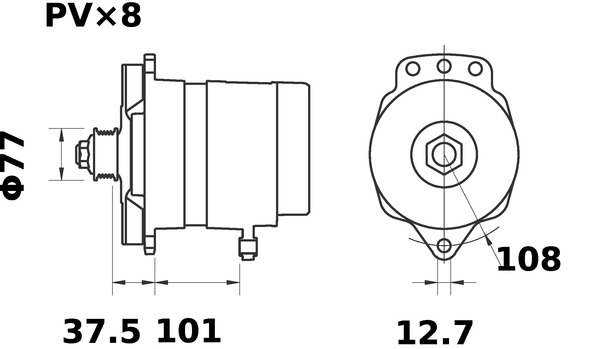

| Belt Pulley Ø (mm) | 77 |
| Bore Diameter (mm) | 12.7 |
| Distance from belt pulley to alternator (mm) | 37.5 |
| Distance of mounting bores (mm) | 102.0 |
| Dust Cover with dust cover | |
| Mounting points diameter (mm) | 108.0 |
| Net Weight (g) | 14128 |
| Number of belts 8 | |
| Number of ribs 8 | |
| Packaging height (cm) | 20.50 |
| Packaging length (cm) | 30.5 |
| Packaging width (cm) | 23.00 |
| Pulleys with V-ribbed belt pulley | |
| Rotation Direction Can be used in clockwise and anticlockwise direction | |
| Voltage (V) | 14 |
Alternator Charging Current [A] 270, Belt Pulley Ø [mm] 77, Bore Diameter [mm] 12,7, Distance from belt pulley to alternator [mm] 37,5, Distance of mounting bores [mm] 102,0, Dust Cover with dust cover, Mounting points diameter [mm] 108,0, Net Weight [g] 14128, Number of belts 8, Number of ribs 8, Packaging height [cm] 20,50, Packaging length [cm] 30,5, Packaging width [cm] 23,00, Pulleys with V-ribbed belt pulley, Rotation Direction Can be used in clockwise and anticlockwise direction, Voltage [V] 14
