Specifications

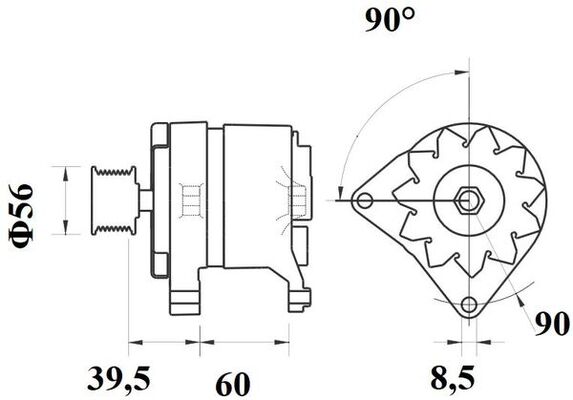

| Alternator Charging Current (A) | 75 |
| Belt Pulley Ø (mm) | 56 |
| Bore Diameter (mm) | 8.5 |
| Connector/Clamp W | |
| Distance from belt pulley to alternator (mm) | 39.5 |
| Distance of mounting bores (mm) | 60.0 |
| Dust Cover with dust cover | |
| Mounting points diameter (mm) | 90.0 |
| Net Weight (g) | 5120 |
| Number of ribs 6 | |
| Packaging height (cm) | 15.50 |
| Packaging length (cm) | 20.8 |
| Packaging width (cm) | 17.60 |
| Pulleys with V-ribbed belt pulley | |
| Rotation Direction Clockwise rotation | |
| Voltage (V) | 14 |
Alternator Charging Current [A] 75, Belt Pulley Ø [mm] 56, Bore Diameter [mm] 8,5, Connector/Clamp W, Distance from belt pulley to alternator [mm] 39,5, Distance of mounting bores [mm] 60,0, Dust Cover with dust cover, Mounting points diameter [mm] 90,0, Net Weight [g] 5120, Number of ribs 6, Packaging height [cm] 15,50, Packaging length [cm] 20,8, Packaging width [cm] 17,60, Pulleys with V-ribbed belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
