Specifications

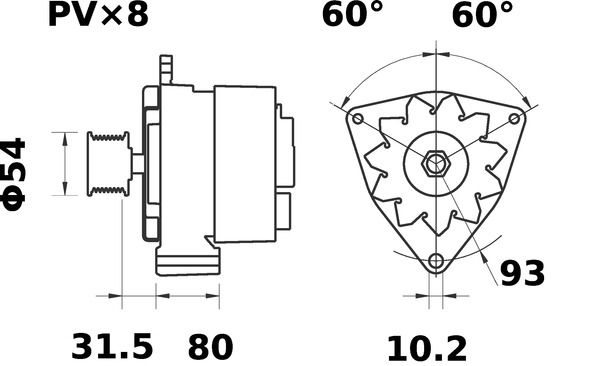

| Alternator Charging Current (A) | 140 |
| Belt Pulley Ø (mm) | 54 |
| Bore Diameter (mm) | 10.2 |
| Connector/Clamp W | |
| Distance from belt pulley to alternator (mm) | 31.5 |
| Distance of mounting bores (mm) | 80.0 |
| Dust Cover with dust cover | |
| Mounting Angle (degrees) | 60.0 |
| Mounting points diameter (mm) | 93.0 |
| Net Weight (g) | 8080 |
| Number of belts 8 | |
| Number of grooves 8 | |
| Number of mounting bores 1 | |
| Number of ribs 8 | |
| Packaging height (cm) | 20.50 |
| Packaging length (cm) | 30.5 |
Alternator Charging Current [A] 140, Belt Pulley Ø [mm] 54, Bore Diameter [mm] 10,2, Connector/Clamp W, Distance from belt pulley to alternator [mm] 31,5, Distance of mounting bores [mm] 80,0, Dust Cover with dust cover, Mounting Angle [degrees] 60,0, Mounting points diameter [mm] 93,0, Net Weight [g] 8080, Number of belts 8, Number of grooves 8, Number of mounting bores 1, Number of ribs 8, Packaging height [cm] 20,50, Packaging length [cm] 30,5, Packaging width [cm] 23,00, Pulleys with V-ribbed belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 28
