Specifications
| Alternator Charging Current (A) | 70 |
| Alternator Type Multi-function | |

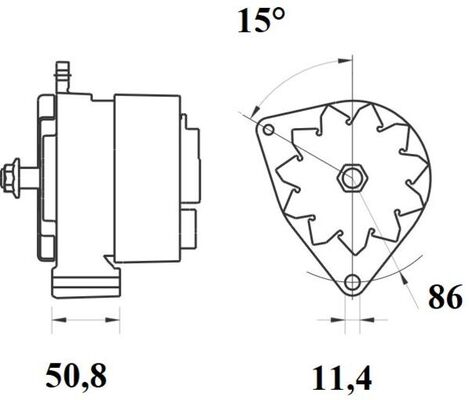

| Bore Diameter (mm) | 11.4 |
| Connector/Clamp W | |
| Distance of mounting bores (mm) | 50.8 |
| Dust Cover with dust cover | |
| Mounting points diameter (mm) | 86.0 |
| Net Weight (g) | 4776 |
| Packaging height (cm) | 15.50 |
| Packaging height (cm) | 17.50 |
| Packaging length (cm) | 20.8 |
| Packaging length (cm) | 24.8 |
| Packaging width (cm) | 17.60 |
| Packaging width (cm) | 18.60 |
| Pulleys without belt pulley | |
| Rotation Direction Clockwise rotation | |
Alternator Charging Current [A] 70, Alternator Type Multi-function, Bore Diameter [mm] 11,4, Connector/Clamp W, Distance of mounting bores [mm] 50,8, Dust Cover with dust cover, Mounting points diameter [mm] 86,0, Net Weight [g] 4776, Packaging height [cm] 15,50, Packaging height [cm] 17,50, Packaging length [cm] 20,8, Packaging length [cm] 24,8, Packaging width [cm] 17,60, Packaging width [cm] 18,60, Pulleys without belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
