Specifications
| Alternator Charging Current (A) | 120 |

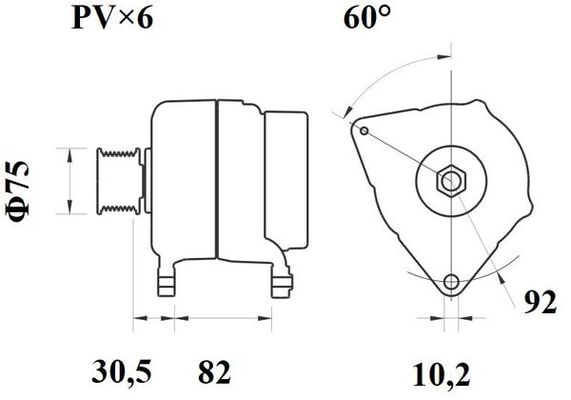

| Belt Pulley Ø (mm) | 75 |
| Bore Diameter (mm) | 9.2 |
| Compact Alternator | |
| Connector/Clamp W | |
| Distance from belt pulley to alternator (mm) | 30.5 |
| Distance of mounting bores (mm) | 82 |
| Dust Cover with dust cover | |
| Mounting points diameter (mm) | 92.0 |
| Net Weight (g) | 7890 |
| Number of mounting bores 2 | |
| Number of ribs 6 | |
| Packaging height (cm) | 20.50 |
| Packaging length (cm) | 30.5 |
| Packaging width (cm) | 23.00 |
| Pulleys with V-ribbed belt pulley | |
Alternator Charging Current [A] 120, Belt Pulley Ø [mm] 75, Bore Diameter [mm] 9,2, Compact Alternator , Connector/Clamp W, Distance from belt pulley to alternator [mm] 30,5, Distance of mounting bores [mm] 82, Dust Cover with dust cover, Mounting points diameter [mm] 92,0, Net Weight [g] 7890, Number of mounting bores 2, Number of ribs 6, Packaging height [cm] 20,50, Packaging length [cm] 30,5, Packaging width [cm] 23,00, Pulleys with V-ribbed belt pulley, Rotation Direction Clockwise rotation, Supplementary Article/Supplementary Info with integrated regulator, Voltage [V] 28
