Specifications

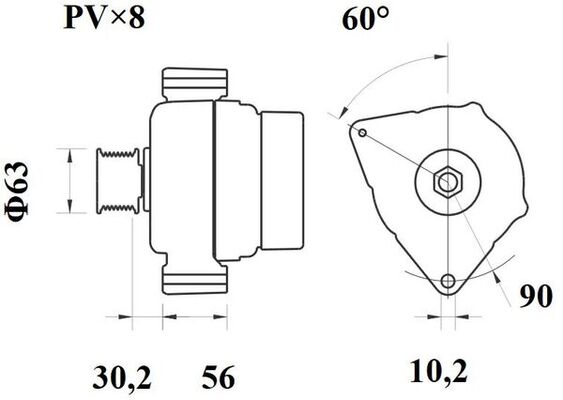

| Alternator Charging Current (A) | 200 |
| Belt Pulley Ø (mm) | 63 |
| Bore Diameter (mm) | 10.2 |
| Compact Alternator | |
| Connector/Clamp W | |
| Distance from belt pulley to alternator (mm) | 30.2 |
| Distance of mounting bores (mm) | 56 |
| Dust Cover with dust cover | |
| Mounting points diameter (mm) | 90 |
| Net Weight (g) | 7865 |
| Number of mounting bores 1 | |
| Number of ribs 8 | |
| Packaging height (cm) | 17.50 |
| Packaging length (cm) | 24.8 |
| Packaging width (cm) | 18.60 |
| Pulleys with V-ribbed belt pulley | |
Alternator Charging Current [A] 200, Belt Pulley Ø [mm] 63, Bore Diameter [mm] 10,2, Compact Alternator , Connector/Clamp W, Distance from belt pulley to alternator [mm] 30,2, Distance of mounting bores [mm] 56, Dust Cover with dust cover, Mounting points diameter [mm] 90, Net Weight [g] 7865, Number of mounting bores 1, Number of ribs 8, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with V-ribbed belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
