Specifications
| Alternator Charging Current (A) | 45 |
| Alternator Type Multi-function | |

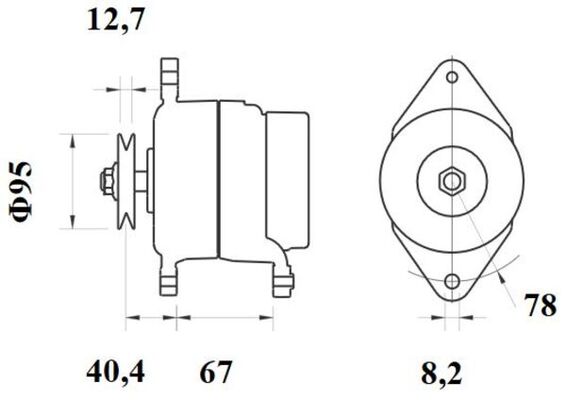

| Belt Pulley Ø (mm) | 95 |
| Bore Diameter (mm) | 8.2 |
| Compact Alternator | |
| Connector/Clamp W | |
| Distance from belt pulley to alternator (mm) | 40.5 |
| Distance of mounting bores (mm) | 67 |
| Dust Cover with dust cover | |
| Mounting points diameter (mm) | 78 |
| Net Weight (g) | 3745 |
| Number of belts 1 | |
| Number of ribs 1 | |
| Packaging height (cm) | 15.50 |
| Packaging length (cm) | 20.8 |
| Packaging width (cm) | 17.60 |
Alternator Charging Current [A] 45, Alternator Type Multi-function, Belt Pulley Ø [mm] 95, Bore Diameter [mm] 8,2, Compact Alternator , Connector/Clamp W, Distance from belt pulley to alternator [mm] 40,5, Distance of mounting bores [mm] 67, Dust Cover with dust cover, Mounting points diameter [mm] 78, Net Weight [g] 3745, Number of belts 1, Number of ribs 1, Packaging height [cm] 15,50, Packaging length [cm] 20,8, Packaging width [cm] 17,60, Pulleys with belt pulley, Rotation Direction Anticlockwise rotation, Voltage [V] 14
