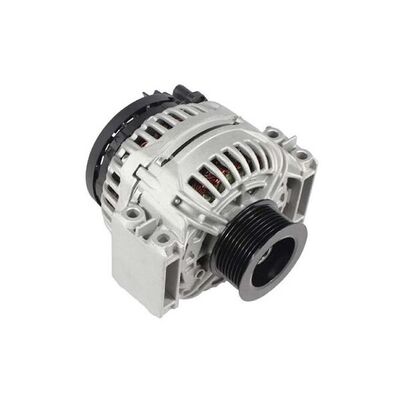

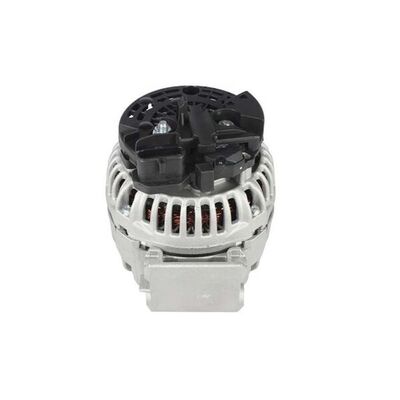

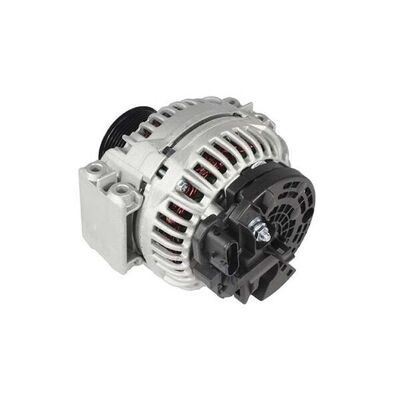

Specifications
| Alternator Charging Current (A) | 100 |
| Bore Diameter (mm) | 10.5 |
| Compact Alternator | |
| Distance from belt pulley to alternator (mm) | 21.0 |
| Distance of mounting bores (mm) | 85 |
| Mounting points diameter (mm) | 76 |
| Pulleys with V-ribbed belt pulley | |
| Rotation Direction Clockwise rotation | |
| Voltage (V) | 28 |
Alternator Charging Current [A] 100, Bore Diameter [mm] 10,5, Compact Alternator , Distance from belt pulley to alternator [mm] 21,0, Distance of mounting bores [mm] 85, Mounting points diameter [mm] 76, Pulleys with V-ribbed belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 28
Fits: MERCEDES-BENZ
Fits: MERCEDES-BENZ
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | FPN (FlatNose) | 2423 B | 1984 – 2011 | 6374 | 170 | 231 |
| MERCEDES-BENZ | FPN (FlatNose) | 1714 | 1984 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | FPN (FlatNose) | 1414 K | 1984 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | FPN (FlatNose) | 1721 S | 1984 – 2011 | 5958 | 155 | 211 |
| MERCEDES-BENZ | FPN (FlatNose) | 1414 | 1984 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | FPN (FlatNose) | 1218 | 1984 – 2011 | 5958 | 125 | 170 |
| MERCEDES-BENZ | FPN (FlatNose) | 2423 K | 1984 – 2011 | 6374 | 170 | 231 |
| MERCEDES-BENZ | FPN (FlatNose) | 2423 B | 1984 – 2011 | 6374 | 170 | 231 |
| MERCEDES-BENZ | FPN (FlatNose) | 1718 M | 1984 – 2011 | 4249 | 130 | 177 |
| MERCEDES-BENZ | FPN (FlatNose) | 1944 S | 1984 – 2011 | 11967 | 320 | 435 |
| MERCEDES-BENZ | FPN (FlatNose) | 1214 K | 1984 – 2011 | 3972 | 105 | 143 |
| MERCEDES-BENZ | FPN (FlatNose) | 2418 | 1984 – 2011 | 5958 | 125 | 170 |
| MERCEDES-BENZ | FPN (FlatNose) | 1723 S | 1984 – 2011 | 5958 | 170 | 231 |
| MERCEDES-BENZ | FPN (FlatNose) | 1418 K | 1984 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | FPN (FlatNose) | 2726 B | 1984 – 2011 | 6374 | 191 | 260 |
| MERCEDES-BENZ | FPN (FlatNose) | 1938 | 1984 – 2011 | 11967 | 280 | 381 |
| MERCEDES-BENZ | FPN (FlatNose) | 1938 S | 1984 – 2011 | 11967 | 280 | 381 |
| MERCEDES-BENZ | FPN (FlatNose) | 1720 K | 1984 – 2011 | 5958 | 155 | 211 |
| MERCEDES-BENZ | FPN (FlatNose) | 1720 A | 1984 – 2011 | 5958 | 155 | 211 |
| MERCEDES-BENZ | FPN (FlatNose) | 1418 R | 1984 – 2011 | 5958 | 125 | 170 |
| MERCEDES-BENZ | FPN (FlatNose) | 2418 | 1984 – 2011 | 5958 | 131 | 178 |
| MERCEDES-BENZ | FPN (FlatNose) | 1721 | 1984 – 2011 | 5958 | 155 | 211 |
| MERCEDES-BENZ | FPN (FlatNose) | 1718 | 1984 – 2011 | 4249 | 130 | 177 |
| MERCEDES-BENZ | FPN (FlatNose) | 1214 | 1984 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | FPN (FlatNose) | 1618 M | 1984 – 2011 | 4249 | 125 | 170 |
| MERCEDES-BENZ | FPN (FlatNose) | L 1317 | 1984 – 2011 | 5675 | 125 | 170 |
| MERCEDES-BENZ | FPN (FlatNose) | LK 1317 | 1984 – 2011 | 5675 | 125 | 170 |
| MERCEDES-BENZ | FPN (FlatNose) | L 1318 | 1984 – 2011 | 5675 | 132 | 180 |
| MERCEDES-BENZ | FPN (FlatNose) | LK 1318 | 1984 – 2011 | 5675 | 132 | 180 |
| MERCEDES-BENZ | FPN (FlatNose) | LPK 1313 | 1984 – 2011 | 5675 | 95 | 129 |
| MERCEDES-BENZ | FPN (FlatNose) | LK 1414 | 1984 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | FPN (FlatNose) | 1418 | 1984 – 2011 | 5958 | 125 | 170 |
| MERCEDES-BENZ | FPN (FlatNose) | LK 1418 | 1984 – 2011 | 5958 | 125 | 170 |
| MERCEDES-BENZ | FPN (FlatNose) | LP 1514 | 1984 – 2011 | 5675 | 95 | 129 |
| MERCEDES-BENZ | FPN (FlatNose) | L 1418 EL | 1984 – 2011 | 4249 | 125 | 170 |
| MERCEDES-BENZ | FPN (FlatNose) | L 1319 | 1984 – 2011 | 5958 | 142 | 193 |
| MERCEDES-BENZ | FPN (FlatNose) | 1318 | 1984 – 2011 | 4249 | 130 | 177 |
| MERCEDES-BENZ | FPN (FlatNose) | 1420 | 1984 – 2011 | 5958 | 155 | 211 |
| MERCEDES-BENZ | FPN (FlatNose) | 1720 | 1984 – 2011 | 5958 | 155 | 211 |
| MERCEDES-BENZ | FPN (FlatNose) | 1723 | 1984 – 2011 | 5958 | 170 | 231 |
| MERCEDES-BENZ | FPN (FlatNose) | 1728 | 1984 – 2011 | 6374 | 205 | 279 |
| MERCEDES-BENZ | FPN (FlatNose) | 1214 C | 1984 – 2011 | 3972 | 105 | 143 |
| MERCEDES-BENZ | FPN (FlatNose) | 1214 K | 1984 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | FPN (FlatNose) | 1215 C | 1984 – 2011 | 4249 | 112 | 152 |
| MERCEDES-BENZ | FPN (FlatNose) | 1418 E | 1984 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | FPN (FlatNose) | 1714 K | 1984 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | FPN (FlatNose) | 1718 | 1984 – 2011 | 5958 | 125 | 170 |
| MERCEDES-BENZ | FPN (FlatNose) | 1718 K | 1984 – 2011 | 5958 | 125 | 170 |
| MERCEDES-BENZ | FPN (FlatNose) | 1718 M | 1984 – 2011 | 4249 | 125 | 170 |
| MERCEDES-BENZ | FPN (FlatNose) | 1944 S | 1984 – 2011 | 11967 | 320 | 435 |
| MERCEDES-BENZ | FPN (FlatNose) | 1718 A | 1984 – 2011 | 5958 | 125 | 170 |
| MERCEDES-BENZ | FPN (FlatNose) | 1720 | 1984 – 2011 | 5958 | 155 | 211 |
| MERCEDES-BENZ | FPN (FlatNose) | 1938 S | 1984 – 2011 | 11967 | 279 | 379 |
| MERCEDES-BENZ | FPN (FlatNose) | 1944 S | 1984 – 2011 | 11967 | 320 | 435 |
| MERCEDES-BENZ | FPN (FlatNose) | 2418 | 1984 – 2011 | 5958 | 125 | 170 |
| MERCEDES-BENZ | FPN (FlatNose) | 2428 | 1984 – 2011 | 6374 | 205 | 279 |
| MERCEDES-BENZ | FPN (FlatNose) | 2638 | 1984 – 2011 | 11967 | 279 | 379 |
| MERCEDES-BENZ | FPN (FlatNose) | 2726 | 1984 – 2011 | 6374 | 191 | 260 |
| MERCEDES-BENZ | FPN (FlatNose) | 2038 S | 1984 – 2011 | 14618 | 279 | 379 |
| MERCEDES-BENZ | FPN (FlatNose) | 2023 K | 1984 – 2011 | 6374 | 170 | 231 |
| MERCEDES-BENZ | FPN (FlatNose) | 2638 S | 1984 – 2011 | 11967 | 279 | 379 |
| MERCEDES-BENZ | FPN (FlatNose) | 2726 K | 1984 – 2011 | 6374 | 191 | 260 |
| MERCEDES-BENZ | HPN (LongNose) | L 1517 | 1973 – 2011 | 5675 | 124 | 169 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1418 E | 1973 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | HPN (LongNose) | 1717 | 1973 – 2011 | 5958 | 125 | 170 |
| MERCEDES-BENZ | HPN (LongNose) | L 1113 | 1973 – 2011 | 5675 | 96 | 131 |
| MERCEDES-BENZ | HPN (LongNose) | LK 1113 | 1973 – 2011 | 5675 | 95 | 129 |
| MERCEDES-BENZ | HPN (LongNose) | LK 1117 | 1973 – 2011 | 5675 | 125 | 170 |
| MERCEDES-BENZ | HPN (LongNose) | L 1214 | 1973 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | HPN (LongNose) | LK 1214 | 1973 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1217 | 1973 – 2011 | 5958 | 125 | 170 |
| MERCEDES-BENZ | HPN (LongNose) | L 1317 | 1973 – 2011 | 5675 | 125 | 170 |
| MERCEDES-BENZ | HPN (LongNose) | LK 1317 | 1973 – 2011 | 5675 | 125 | 170 |
| MERCEDES-BENZ | HPN (LongNose) | L 1514 | 1973 – 2011 | 5985 | 100 | 136 |
| MERCEDES-BENZ | HPN (LongNose) | LK 1514 | 1973 – 2011 | 5985 | 100 | 136 |
| MERCEDES-BENZ | HPN (LongNose) | LK 1517 | 1973 – 2011 | 5675 | 124 | 169 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1523 | 1973 – 2011 | 9651 | 169 | 230 |
| MERCEDES-BENZ | HPN (LongNose) | LK 1614 | 1973 – 2011 | 5985 | 100 | 136 |
| MERCEDES-BENZ | HPN (LongNose) | L 1618 | 1973 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | HPN (LongNose) | LK 1618 | 1973 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | HPN (LongNose) | L 1620 | 1973 – 2011 | 5958 | 154 | 209 |
| MERCEDES-BENZ | HPN (LongNose) | L 1621 | 1973 – 2011 | 5958 | 150 | 204 |
| MERCEDES-BENZ | HPN (LongNose) | LK 1620, LK 1621 | 1973 – 2011 | 5958 | 154 | 209 |
| MERCEDES-BENZ | HPN (LongNose) | L 1622 | 1973 – 2011 | 4801 | 160 | 218 |
| MERCEDES-BENZ | HPN (LongNose) | L 1625 | 1973 – 2011 | 9973 | 184 | 250 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1625 | 1973 – 2011 | 9973 | 184 | 250 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1630 | 1973 – 2011 | 9973 | 221 | 301 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1632 | 1973 – 2011 | 9973 | 235 | 320 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1636 | 1973 – 2011 | 11967 | 265 | 360 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1934 | 1973 – 2011 | 11581 | 250 | 340 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1935 | 1973 – 2011 | 11967 | 257 | 350 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1938 | 1973 – 2011 | 11967 | 279 | 379 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1941 | 1973 – 2011 | 11967 | 300 | 408 |
| MERCEDES-BENZ | HPN (LongNose) | L 1218 EL | 1973 – 2011 | 4249 | 125 | 170 |
| MERCEDES-BENZ | HPN (LongNose) | L 1623 | 1973 – 2011 | 6374 | 170 | 231 |
| MERCEDES-BENZ | HPN (LongNose) | L 1714 | 1973 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | HPN (LongNose) | L 1721 | 1973 – 2011 | 5958 | 154 | 209 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1933 | 1973 – 2011 | 11581 | 240 | 326 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1634 | 1973 – 2011 | 11967 | 250 | 340 |
| MERCEDES-BENZ | HPN (LongNose) | 1718 | 1973 – 2011 | 5958 | 125 | 170 |
| MERCEDES-BENZ | HPN (LongNose) | L 1620 | 1973 – 2011 | 5958 | 154 | 209 |
| MERCEDES-BENZ | HPN (LongNose) | L 1622 | 1973 – 2011 | 4801 | 160 | 218 |
| MERCEDES-BENZ | HPN (LongNose) | L 1625 | 1973 – 2011 | 9973 | 184 | 250 |
| MERCEDES-BENZ | HPN (LongNose) | 1720 | 1973 – 2011 | 5958 | 154 | 209 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1938 | 1973 – 2011 | 11967 | 279 | 379 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1944 | 1973 – 2011 | 11967 | 320 | 435 |
| MERCEDES-BENZ | HPN (LongNose) | L 2215 | 1973 – 2011 | 5675 | 109 | 148 |
| MERCEDES-BENZ | HPN (LongNose) | L 2220 | 1973 – 2011 | 9651 | 147 | 200 |
| MERCEDES-BENZ | HPN (LongNose) | L 2225 | 1973 – 2011 | 9651 | 150 | 204 |
| MERCEDES-BENZ | HPN (LongNose) | L 2314 | 1973 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | HPN (LongNose) | L 2318 | 1973 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | HPN (LongNose) | L 2325 | 1973 – 2011 | 9973 | 184 | 250 |
| MERCEDES-BENZ | HPN (LongNose) | L 2418 | 1973 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | HPN (LongNose) | 2428 | 1973 – 2011 | 6374 | 205 | 279 |
| MERCEDES-BENZ | HPN (LongNose) | L 2635 | 1973 – 2011 | 11967 | 260 | 354 |
| MERCEDES-BENZ | HPN (LongNose) | L 2638 | 1973 – 2011 | 11967 | 280 | 381 |
| MERCEDES-BENZ | HPN (LongNose) | 2726 | 1973 – 2011 | 6374 | 191 | 260 |
| MERCEDES-BENZ | HPN (LongNose) | 2038 | 1973 – 2011 | 14618 | 280 | 381 |
| MERCEDES-BENZ | HPN (LongNose) | 2423 K | 1973 – 2011 | 6374 | 170 | 231 |
| MERCEDES-BENZ | HPN (LongNose) | 2638 S | 1973 – 2011 | 14618 | 280 | 381 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1924 | 1973 – 2011 | 11581 | 176 | 239 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1929 | 1973 – 2011 | 11581 | 209 | 284 |
| MERCEDES-BENZ | HPN (LongNose) | L 2217 | 1973 – 2011 | 5675 | 125 | 170 |
| MERCEDES-BENZ | HPN (LongNose) | L 2218 | 1973 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | HPN (LongNose) | L 2219 | 1973 – 2011 | 9651 | 141 | 192 |
| MERCEDES-BENZ | HPN (LongNose) | L 1314 | 1973 – 2011 | 5675 | 96 | 131 |
| MERCEDES-BENZ | HPN (LongNose) | L 1319 | 1973 – 2011 | 5958 | 142 | 193 |
| MERCEDES-BENZ | HPN (LongNose) | L 1414 | 1973 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | HPN (LongNose) | L 1620 | 1973 – 2011 | 6374 | 170 | 231 |
| MERCEDES-BENZ | HPN (LongNose) | LB 2318 | 1973 – 2011 | 5958 | 125 | 170 |
| MERCEDES-BENZ | HPN (LongNose) | LK 1620 | 1973 – 2011 | 5958 | 154 | 209 |
| MERCEDES-BENZ | HPN (LongNose) | LK 1418 R | 1973 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | HPN (LongNose) | L 1215 | 1973 – 2011 | 5958 | 155 | 211 |
| MERCEDES-BENZ | HPN (LongNose) | LK 1614 | 1973 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1418 | 1973 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | HPN (LongNose) | L 1218 | 1973 – 2011 | 5958 | 125 | 170 |
| MERCEDES-BENZ | HPN (LongNose) | L 1418 E | 1973 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | HPN (LongNose) | L 1418 EL | 1973 – 2011 | 4249 | 125 | 170 |
| MERCEDES-BENZ | HPN (LongNose) | L 1614 | 1973 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | HPN (LongNose) | L 1620 | 1973 – 2011 | 6374 | 170 | 231 |
| MERCEDES-BENZ | HPN (LongNose) | L 1714 K | 1973 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | HPN (LongNose) | L 1721 S | 1973 – 2011 | 5958 | 154 | 209 |
| MERCEDES-BENZ | HPN (LongNose) | LK 1314 | 1973 – 2011 | 5675 | 96 | 131 |
| MERCEDES-BENZ | HPN (LongNose) | LK 1414 | 1973 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | HPN (LongNose) | LK 1418 E | 1973 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | HPN (LongNose) | LS 1634 | 1973 – 2011 | 11967 | 265 | 360 |
| MERCEDES-BENZ | HPN (LongNose) | LK 2635 | 1973 – 2011 | 11967 | 260 | 354 |
| MERCEDES-BENZ | HPN (LongNose) | LK 2318 | 1973 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | HPN (LongNose) | LB 2318 | 1973 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | HPN (LongNose) | LS 2635 | 1973 – 2011 | 11967 | 260 | 354 |
| MERCEDES-BENZ | HPN (LongNose) | LA 1414 | 1973 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | HPN (LongNose) | LAK 1414 | 1973 – 2011 | 5958 | 100 | 136 |
| MERCEDES-BENZ | HPN (LongNose) | LA 1418 | 1973 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | HPN (LongNose) | LAK 1418 | 1973 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | HPN (LongNose) | L 2318 | 1973 – 2011 | 5958 | 135 | 184 |
| MERCEDES-BENZ | HPN (LongNose) | LK 2325 | 1973 – 2011 | 9973 | 184 | 250 |
| MERCEDES-BENZ | HPN (LongNose) | LB 2325 | 1973 – 2011 | 9973 | 184 | 250 |
