Electric Universal Parts

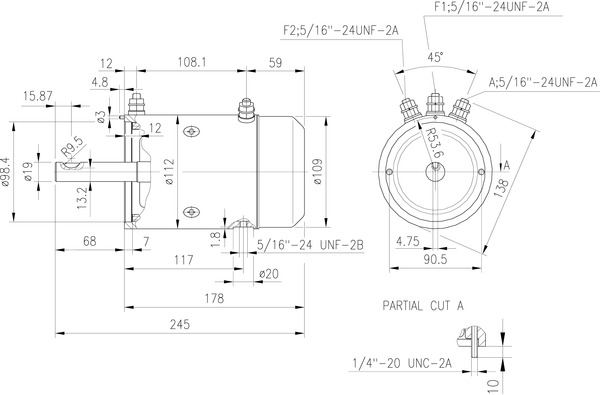

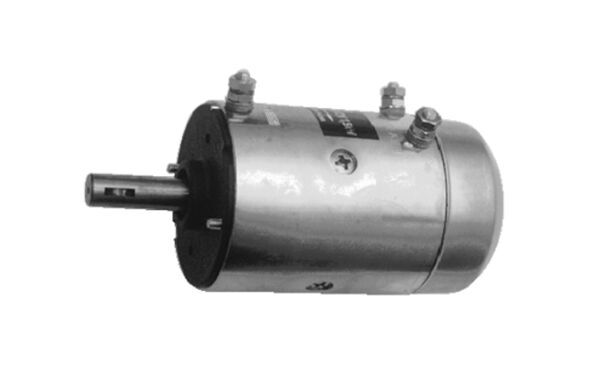

Electric Motor

Part No. MM 141 · SKU MM 141-MAHLE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Net Weight (g)7245
Packaging height (cm)13.50
Packaging length (cm)31.8
Packaging width (cm)16.60
Power (kW)1.5
Protection Type (IP Code) IP44
Rotation Direction Can be used in clockwise and anticlockwise direction
Service Speed (1/min)2800
Voltage (V)12
Weight (kg)6.7
Net Weight [g] 7245, Packaging height [cm] 13,50, Packaging length [cm] 31,8, Packaging width [cm] 16,60, Power [kW] 1,5, Protection Type (IP Code) IP44, Rotation Direction Can be used in clockwise and anticlockwise direction, Service Speed [1/min] 2800, Voltage [V] 12, Weight [kg] 6,7

Interchangeable Part Numbers

BOM-Prestolite46-103 BOM-Prestolite46-2099 BOM-Prestolite46-2285 BOM-Prestolite46-2287 BOM-Prestolite46-2401 BOM-Prestolite46-2426 BOM-Prestolite46-2636 BOM-Prestolite46-4157 BOM-Prestolite46-4214 BOM-PrestoliteMBJ-4003 BOM-PrestoliteMBJ-4007 BOM-PrestoliteMBJ-4008 BOM-PrestoliteMBJ-4201 BOM-PrestoliteMBJ-4202 BOM-PrestoliteMBJ-4209 BOM-PrestoliteMBJ-4402 BOM-PrestoliteMBJ-4405 BOM-PrestoliteMBJ-4407 BOM-PrestoliteMBJ-4411 BOM-PrestoliteMBJ-4412 BOM-PrestoliteMBJ-4415 BOM-PrestoliteMBJ-4416 BOM-PrestoliteMBJ-6201 BOM-PrestoliteMRV-B8 BOM-PrestoliteMUR-6202s BOM-PrestoliteMUR-6202 WAI5687N DB
