Specifications

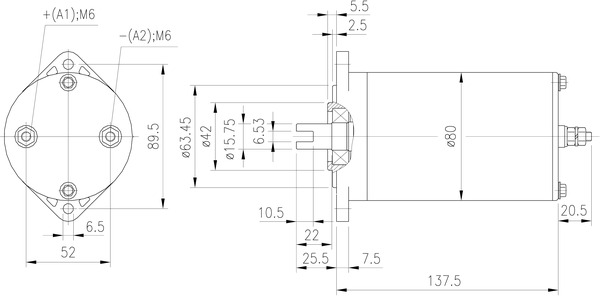

| Centering Diameter (mm) | 63.5 |
| Distance of mounting bores (mm) | 89.5. for shaft diameter [mm] 15.8 |
| Length (mm) | 137.5 |
| Net Weight (g) | 2461 |
| Operating time to (min) | 4.0 |
| Packaging height (cm) | 9.90 |
| Packaging length (cm) | 19.5 |
| Packaging width (cm) | 9.90 |
| Power (kW) | 0.8 |
| Protection Type (IP Code) IP54 | |
| Rotation Direction Clockwise rotation | |
| Service Speed (1/min) | 4500 |
| Voltage (V) | 24 |
| Weight (kg) | 2.461 |
Centering Diameter [mm] 63,5, Distance of mounting bores [mm] 89,5, for shaft diameter [mm] 15,8, Length [mm] 137,5, Net Weight [g] 2461, Operating time to [min] 4,0, Packaging height [cm] 9,90, Packaging length [cm] 19,5, Packaging width [cm] 9,90, Power [kW] 0,8, Protection Type (IP Code) IP54, Rotation Direction Clockwise rotation, Service Speed [1/min] 4500, Voltage [V] 24, Weight [kg] 2,461
