Specifications

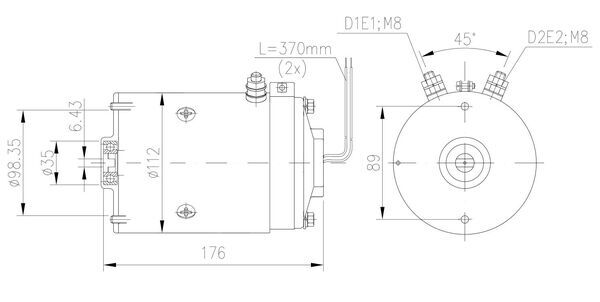

| Centering Diameter (mm) | 98.35. for shaft diameter [mm] 15.0 |
| Length (mm) | 176.0 |
| Net Weight (g) | 6700 |
| Packaging height (cm) | 13.60 |
| Packaging length (cm) | 25.0 |
| Packaging width (cm) | 16.60 |
| Power (kW) | 2.0 |
| Protection Type (IP Code) IP44 | |
| Rotation Direction Anticlockwise rotation | |
| Service Speed (1/min) | 2750 |
| Voltage (V) | 24 |
| Weight (kg) | 5.64 |
Centering Diameter [mm] 98,35, for shaft diameter [mm] 15,0, Length [mm] 176,0, Net Weight [g] 6700, Packaging height [cm] 13,60, Packaging length [cm] 25,0, Packaging width [cm] 16,60, Power [kW] 2,0, Protection Type (IP Code) IP44, Rotation Direction Anticlockwise rotation, Service Speed [1/min] 2750, Voltage [V] 24, Weight [kg] 5,64
