Specifications
| for shaft diameter (mm) | 17.4 |

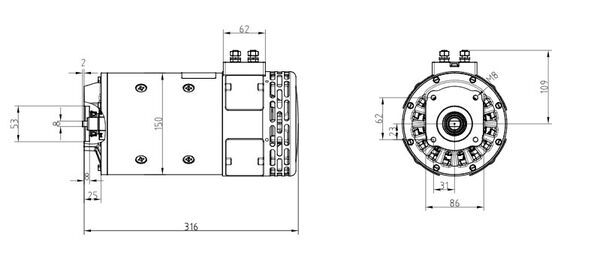

| Length (mm) | 316 |
| Net Weight (g) | 22000 |
| Operating time to (min) | 30 |
| Packaging height (cm) | 26.60 |
| Packaging length (cm) | 44.2 |
| Packaging width (cm) | 26.60 |
| Power (kW) | 3.0 |
| Protection Type (IP Code) IP21 | |
| Rotation Direction Clockwise rotation | |
| Service Speed (1/min) | 1600 |
| Voltage (V) | 24 |
| Weight (kg) | 22 |
for shaft diameter [mm] 17,4, Length [mm] 316, Net Weight [g] 22000, Operating time to [min] 30, Packaging height [cm] 26,60, Packaging length [cm] 44,2, Packaging width [cm] 26,60, Power [kW] 3,0, Protection Type (IP Code) IP21, Rotation Direction Clockwise rotation, Service Speed [1/min] 1600, Voltage [V] 24, Weight [kg] 22
