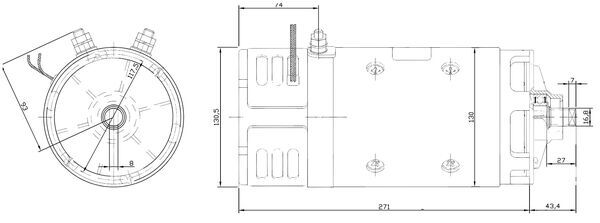

Specifications
| Centering Diameter (mm) | 110.5 |
| Distance of mounting bores (mm) | 117.5. for shaft diameter [mm] 17 |
| Length (mm) | 271 |
| Power (kW) | 4 |
| Protection Type (IP Code) IP12 | |
| Rotation Direction Clockwise rotation | |
| Service Speed (1/min) | 2500 |
| Voltage (V) | 24 |
| Weight (kg) | 16.5 |
Centering Diameter [mm] 110,5, Distance of mounting bores [mm] 117,5, for shaft diameter [mm] 17, Length [mm] 271, Power [kW] 4, Protection Type (IP Code) IP12, Rotation Direction Clockwise rotation, Service Speed [1/min] 2500, Voltage [V] 24, Weight [kg] 16,5
