Specifications

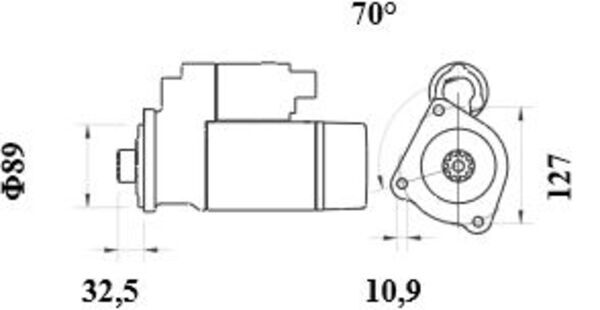

| Bore Diameter 1 (mm) | 10.9 |
| Flange Diameter (mm) | 89. for flywheel depth [mm] 32.5 |
| Mounting points diameter (mm) | 127 |
| Net Weight (g) | 5787 |
| Number of mounting bores 3 | |
| Number of Teeth 10 | |
| Packaging height (cm) | 13.50 |
| Packaging length (cm) | 31.8 |
| Packaging width (cm) | 16.60 |
| Rated Power (kW) | 2.7 |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 15.42 |
| Transmission Type with reduction gear | |
| Voltage (V) | 12 |
Bore Diameter 1 [mm] 10,9, Flange Diameter [mm] 89, for flywheel depth [mm] 32,5, Mounting points diameter [mm] 127, Net Weight [g] 5787, Number of mounting bores 3, Number of Teeth 10, Packaging height [cm] 13,50, Packaging length [cm] 31,8, Packaging width [cm] 16,60, Rated Power [kW] 2,7, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 15,42, Transmission Type with reduction gear, Voltage [V] 12
