Specifications

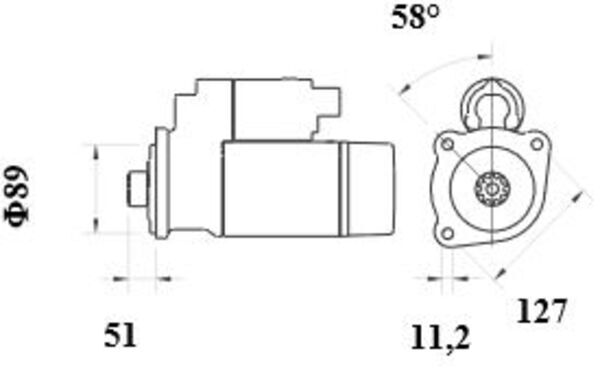

| Bore Diameter 1 (mm) | 11.2 |
| Flange Diameter (mm) | 89. for flywheel depth [mm] 51 |
| Mounting points diameter (mm) | 127 |
| Net Weight (g) | 9100 |
| Number of mounting bores 3 | |
| Number of Teeth 12 | |
| Packaging height (cm) | 14.50 |
| Packaging length (cm) | 38.2 |
| Packaging width (cm) | 21.50 |
| Rated Power (kW) | 5.5 |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 14.72 |
| Transmission Type with reduction gear | |
| Voltage (V) | 24 |
Bore Diameter 1 [mm] 11,2, Flange Diameter [mm] 89, for flywheel depth [mm] 51, Mounting points diameter [mm] 127, Net Weight [g] 9100, Number of mounting bores 3, Number of Teeth 12, Packaging height [cm] 14,50, Packaging length [cm] 38,2, Packaging width [cm] 21,50, Rated Power [kW] 5,5, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 14,72, Transmission Type with reduction gear, Voltage [V] 24
