Specifications

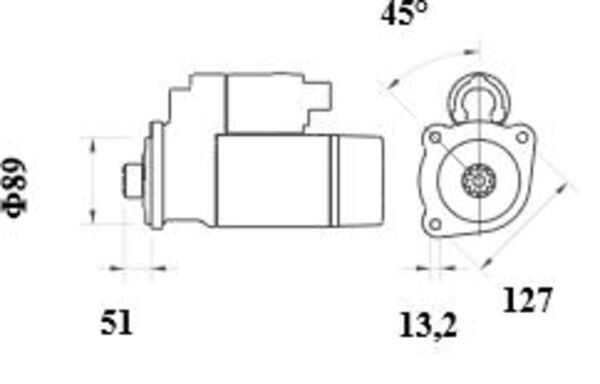

| Bore Diameter 1 (mm) | 13.2 |
| Clamp 31 | |
| Flange Diameter (mm) | 89. for flywheel depth [mm] 51 |
| Mounting points diameter (mm) | 127 |
| Net Weight (g) | 7400 |
| Number of mounting bores 3 | |
| Number of Teeth 11 | |
| Packaging height (cm) | 18.80 |
| Packaging length (cm) | 39.0 |
| Packaging width (cm) | 21.50 |
| Rated Power (kW) | 5.0 |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 14.4 |
| Transmission Type with reduction gear | |
| Voltage (V) | 24 |
Bore Diameter 1 [mm] 13,2, Clamp 31, Flange Diameter [mm] 89, for flywheel depth [mm] 51, Mounting points diameter [mm] 127, Net Weight [g] 7400, Number of mounting bores 3, Number of Teeth 11, Packaging height [cm] 18,80, Packaging length [cm] 39,0, Packaging width [cm] 21,50, Rated Power [kW] 5,0, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 14,4, Transmission Type with reduction gear, Voltage [V] 24
