Specifications

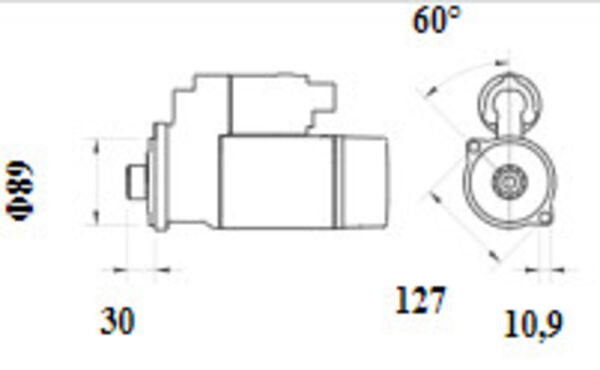

| Bore Diameter 1 (mm) | 10.9 |
| Flange Diameter (mm) | 89. for flywheel depth [mm] 30 |
| Mounting points diameter (mm) | 127 |
| Net Weight (g) | 7400 |
| Number of mounting bores 2 | |
| Number of Teeth 10 | |
| Packaging height (cm) | 14.50 |
| Packaging length (cm) | 38.2 |
| Packaging width (cm) | 21.50 |
| Rated Power (kW) | 3.2 |
| Rotation Direction Anticlockwise rotation | |
| Tooth Pitch (mm) | 14.38 |
| Transmission Type with reduction gear | |
| Voltage (V) | 24 |
Bore Diameter 1 [mm] 10,9, Flange Diameter [mm] 89, for flywheel depth [mm] 30, Mounting points diameter [mm] 127, Net Weight [g] 7400, Number of mounting bores 2, Number of Teeth 10, Packaging height [cm] 14,50, Packaging length [cm] 38,2, Packaging width [cm] 21,50, Rated Power [kW] 3,2, Rotation Direction Anticlockwise rotation, Tooth Pitch [mm] 14,38, Transmission Type with reduction gear, Voltage [V] 24
