Specifications

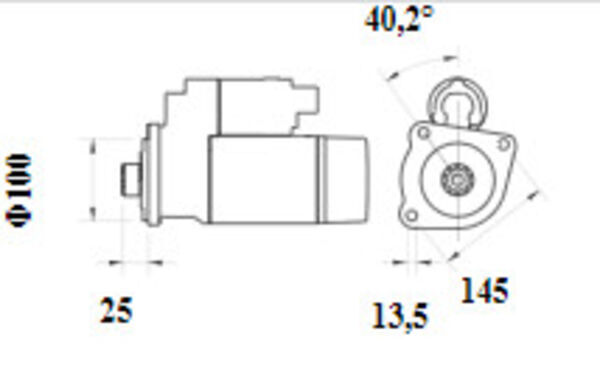

| Bore Diameter 1 (mm) | 13.5 |
| Flange Diameter (mm) | 100. for flywheel depth [mm] 25 |
| Mounting points diameter (mm) | 145 |
| Net Weight (g) | 7000 |
| Number of mounting bores 3 | |
| Number of Teeth 13 | |
| Packaging height (cm) | 13.50 |
| Packaging length (cm) | 31.8 |
| Packaging width (cm) | 16.60 |
| Rated Power (kW) | 5.0 |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 24 |
| Transmission Type with reduction gear | |
| Voltage (V) | 24 |
Bore Diameter 1 [mm] 13,5, Flange Diameter [mm] 100, for flywheel depth [mm] 25, Mounting points diameter [mm] 145, Net Weight [g] 7000, Number of mounting bores 3, Number of Teeth 13, Packaging height [cm] 13,50, Packaging length [cm] 31,8, Packaging width [cm] 16,60, Rated Power [kW] 5,0, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 24, Transmission Type with reduction gear, Voltage [V] 24
