Specifications

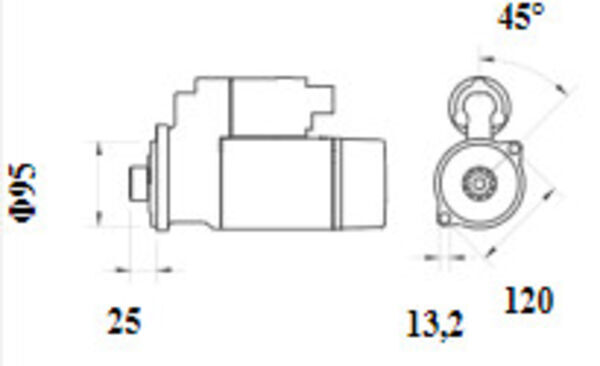

| Bore Diameter 1 (mm) | 13.2 |
| Flange Diameter (mm) | 95. for flywheel depth [mm] 25 |
| Mounting Angle (degrees) | 45 |
| Mounting points diameter (mm) | 120 |
| Net Weight (g) | 3700 |
| Number of mounting bores 2 | |
| Number of Teeth 9 | |
| Packaging height (cm) | 13.60 |
| Packaging length (cm) | 25.0 |
| Packaging width (cm) | 16.60 |
| Rated Power (kW) | 1.4 |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 13.48 |
| Transmission Type with reduction gear | |
| Voltage (V) | 12 |
Bore Diameter 1 [mm] 13,2, Flange Diameter [mm] 95, for flywheel depth [mm] 25, Mounting Angle [degrees] 45, Mounting points diameter [mm] 120, Net Weight [g] 3700, Number of mounting bores 2, Number of Teeth 9, Packaging height [cm] 13,60, Packaging length [cm] 25,0, Packaging width [cm] 16,60, Rated Power [kW] 1,4, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 13,48, Transmission Type with reduction gear, Voltage [V] 12
