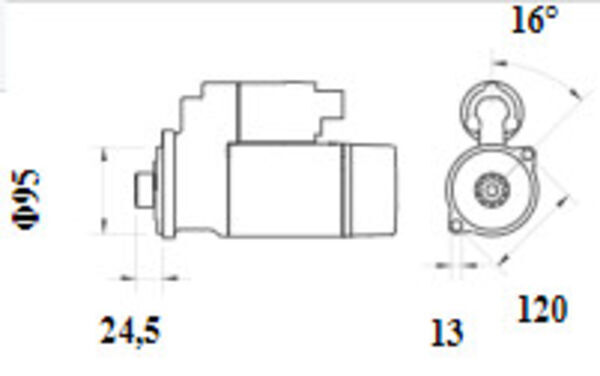

Specifications
| Bore Diameter 1 (mm) | 13 |
| Flange Diameter (mm) | 95. for flywheel depth [mm] 24.5 |
| Mounting Angle (degrees) | 16 |
| Mounting points diameter (mm) | 120 |
| Net Weight (g) | 5231 |
| Number of mounting bores 2 | |
| Number of Teeth 15 | |
| Packaging height (cm) | 13.50 |
| Packaging length (cm) | 31.8 |
| Packaging width (cm) | 16.60 |
| Rated Power (kW) | 2.5 |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 12.1 |
| Transmission Type with reduction gear | |
| Voltage (V) | 12 |
Bore Diameter 1 [mm] 13, Flange Diameter [mm] 95, for flywheel depth [mm] 24,5, Mounting Angle [degrees] 16, Mounting points diameter [mm] 120, Net Weight [g] 5231, Number of mounting bores 2, Number of Teeth 15, Packaging height [cm] 13,50, Packaging length [cm] 31,8, Packaging width [cm] 16,60, Rated Power [kW] 2,5, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 12,1, Transmission Type with reduction gear, Voltage [V] 12
