Specifications

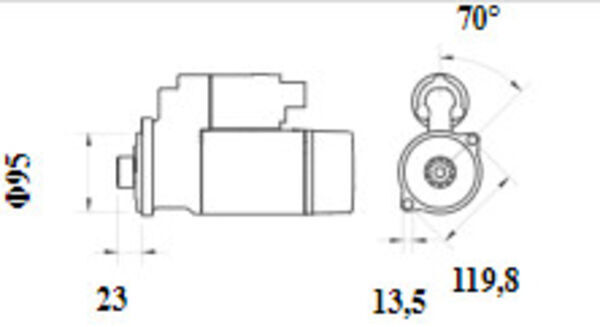

| Bore Diameter 1 (mm) | 13.5 |
| Flange Diameter (mm) | 95. for flywheel depth [mm] 23 |
| Mounting Angle (degrees) | 70 |
| Mounting points diameter (mm) | 119.8 |
| Net Weight (g) | 6100 |
| Number of mounting bores 2 | |
| Number of Teeth 11 | |
| Packaging height (cm) | 14.50 |
| Packaging length (cm) | 38.2 |
| Packaging width (cm) | 21.50 |
| Rated Power (kW) | 2.2 |
| Rotation Direction Clockwise rotation | |
| Transmission Type with reduction gear | |
| Voltage (V) | 12 |
Bore Diameter 1 [mm] 13,5, Flange Diameter [mm] 95, for flywheel depth [mm] 23, Mounting Angle [degrees] 70, Mounting points diameter [mm] 119,8, Net Weight [g] 6100, Number of mounting bores 2, Number of Teeth 11, Packaging height [cm] 14,50, Packaging length [cm] 38,2, Packaging width [cm] 21,50, Rated Power [kW] 2,2, Rotation Direction Clockwise rotation, Transmission Type with reduction gear, Voltage [V] 12
