Specifications

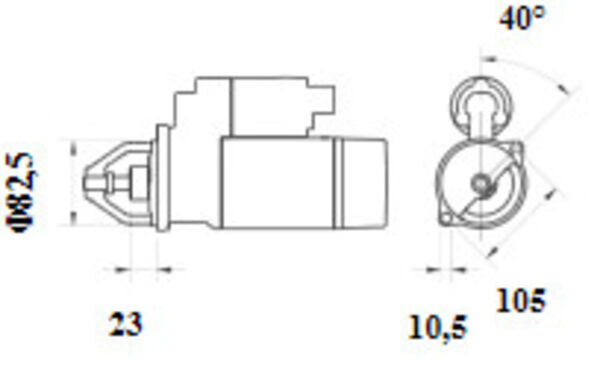

| Bore Diameter 1 (mm) | 10.5 |
| Flange Diameter (mm) | 82.5. for flywheel depth [mm] 23 |
| Mounting Angle (degrees) | 40 |
| Mounting points diameter (mm) | 105 |
| Net Weight (g) | 8400 |
| Number of mounting bores 2 | |
| Number of Teeth 11 | |
| Packaging height (cm) | 14.50 |
| Packaging length (cm) | 38.2 |
| Packaging width (cm) | 21.50 |
| Rated Power (kW) | 3.2 |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 14.3 |
| Transmission Type with reduction gear | |
| Voltage (V) | 12 |
Bore Diameter 1 [mm] 10,5, Flange Diameter [mm] 82,5, for flywheel depth [mm] 23, Mounting Angle [degrees] 40, Mounting points diameter [mm] 105, Net Weight [g] 8400, Number of mounting bores 2, Number of Teeth 11, Packaging height [cm] 14,50, Packaging length [cm] 38,2, Packaging width [cm] 21,50, Rated Power [kW] 3,2, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 14,3, Transmission Type with reduction gear, Voltage [V] 12
