Specifications

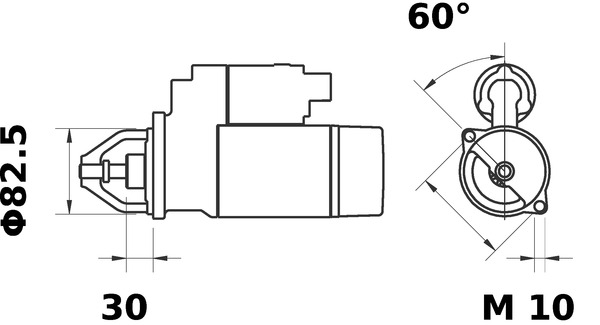

| Bore Diameter 1 (mm) | 10 |
| Flange Diameter (mm) | 82.5. for flywheel depth [mm] 30.0 |
| Mounting points diameter (mm) | 105 |
| Net Weight (g) | 5986 |
| Number of mounting bores 2 | |
| Number of Teeth 10 | |
| Packaging height (cm) | 13.50 |
| Packaging length (cm) | 31.8 |
| Packaging width (cm) | 16.60 |
| Rated Power (kW) | 2.2 |
| Rotation Direction Clockwise rotation | |
| Thread Size M 10 | |
| Tooth Pitch (mm) | 10.5 |
| Transmission Type with reduction gear | |
| Voltage (V) | 12 |
Bore Diameter 1 [mm] 10, Flange Diameter [mm] 82,5, for flywheel depth [mm] 30,0, Mounting points diameter [mm] 105, Net Weight [g] 5986, Number of mounting bores 2, Number of Teeth 10, Packaging height [cm] 13,50, Packaging length [cm] 31,8, Packaging width [cm] 16,60, Rated Power [kW] 2,2, Rotation Direction Clockwise rotation, Thread Size M 10, Tooth Pitch [mm] 10,5, Transmission Type with reduction gear, Voltage [V] 12
Fits: MERCEDES-BENZ, TOYOTA
Fits: MERCEDES-BENZ, TOYOTA
Interchangeable Part Numbers
OE Numbers — MERCEDES-BENZ 004 151 20
OE Numbers — MERCEDES-BENZ
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | E-CLASS Convertible (A124) | E 220 (124.062) | 1993 – 1998 | 2199 | 110 | 150 |
| MERCEDES-BENZ | E-CLASS Convertible (A124) | E 320 (124.066) | 1993 – 1998 | 3199 | 162 | 220 |
| MERCEDES-BENZ | E-CLASS Convertible (A124) | E 200 (124.060) | 1993 – 1998 | 1998 | 100 | 136 |
| MERCEDES-BENZ | E-CLASS Convertible (A124) | E 36 AMG (124.066) | 1993 – 1998 | 3606 | 200 | 272 |
| MERCEDES-BENZ | T1 Bus (602) | 308 D 2.3 | 1977 – 1996 | 2299 | 58 | 79 |
| MERCEDES-BENZ | T1 Bus (602) | 310 D 2.9 | 1977 – 1996 | 2874 | 72 | 98 |
| MERCEDES-BENZ | T1 Bus (602) | 310 D 2.9 | 1977 – 1996 | 2874 | 70 | 95 |
| MERCEDES-BENZ | T1 Bus (602) | 308 D 2.3 | 1977 – 1996 | 2299 | 60 | 82 |
| MERCEDES-BENZ | T1 Bus (B601) | 207 D 2.4 (601.371, 601.376, 601.377) | 1977 – 1996 | 2399 | 53 | 72 |
| MERCEDES-BENZ | T1 Bus (B601) | 210 2.3 | 1977 – 1996 | 2298 | 70 | 95 |
| MERCEDES-BENZ | T1 Bus (B601) | 208 2.3 | 1977 – 1996 | 2307 | 63 | 86 |
| MERCEDES-BENZ | T1 Bus (B601) | 210 2.3 | 1977 – 1996 | 2298 | 77 | 105 |
| MERCEDES-BENZ | T1 Bus (B601) | 208 D 2.3 (601.371, 601.372, 601.376, 601.377) | 1977 – 1996 | 2299 | 58 | 79 |
| MERCEDES-BENZ | T1 Bus (B601) | 208 D 2.3 | 1977 – 1996 | 2299 | 60 | 82 |
| MERCEDES-BENZ | T1 Bus (B601) | 209 D 2.9 | 1977 – 1996 | 2998 | 65 | 88 |
| MERCEDES-BENZ | T1 Bus (B601) | 207 D 2.4 (601.371, 601.372, 601.376, 601.377) | 1977 – 1996 | 2404 | 48 | 65 |
| MERCEDES-BENZ | T1 Bus (B601) | 210 D 2.8 | 1977 – 1996 | 2874 | 70 | 95 |
| MERCEDES-BENZ | T1 Bus (B601) | 210 D 2.8 | 1977 – 1996 | 2874 | 72 | 98 |
| MERCEDES-BENZ | T1 Platform/Chassis (601) | 208 D 2.3 | 1977 – 1996 | 2299 | 60 | 82 |
| MERCEDES-BENZ | T1 Platform/Chassis (601) | 210 D 2.8 | 1977 – 1996 | 2874 | 72 | 98 |
| MERCEDES-BENZ | T1 Platform/Chassis (601) | 208 D 2.3 | 1977 – 1996 | 2299 | 58 | 79 |
| MERCEDES-BENZ | T1 Platform/Chassis (601) | 207 D 2.4 | 1977 – 1996 | 2404 | 48 | 65 |
| MERCEDES-BENZ | T1 Platform/Chassis (601) | 210 2.3 | 1977 – 1996 | 2307 | 63 | 86 |
| MERCEDES-BENZ | T1 Platform/Chassis (601) | 210 2.3 | 1977 – 1996 | 2298 | 70 | 95 |
| MERCEDES-BENZ | T1 Platform/Chassis (601) | 207 D 2.4 | 1977 – 1996 | 2399 | 53 | 72 |
| MERCEDES-BENZ | T1 Platform/Chassis (601) | 209 D 2.9 | 1977 – 1996 | 2998 | 65 | 88 |
| MERCEDES-BENZ | T1 Platform/Chassis (601) | 210 D 2.9 | 1977 – 1996 | 2874 | 70 | 95 |
| MERCEDES-BENZ | T1 Platform/Chassis (B602) | 310 2.3 | 1977 – 1996 | 2299 | 70 | 95 |
| MERCEDES-BENZ | T1 Platform/Chassis (B602) | 307 D 2.4 | 1977 – 1996 | 2399 | 53 | 72 |
| MERCEDES-BENZ | T1 Platform/Chassis (B602) | 307 D 2.4 | 1977 – 1996 | 2399 | 48 | 65 |
| MERCEDES-BENZ | T1 Platform/Chassis (B602) | 308 D 2.3 | 1977 – 1996 | 2299 | 60 | 82 |
| MERCEDES-BENZ | T1 Platform/Chassis (B602) | 310 D 2.9 | 1977 – 1996 | 2874 | 70 | 95 |
| MERCEDES-BENZ | T1 Platform/Chassis (B602) | 310 D 2.9 | 1977 – 1996 | 2874 | 72 | 98 |
| MERCEDES-BENZ | T1 Platform/Chassis (B602) | 308 D 2.3 | 1977 – 1996 | 2299 | 58 | 79 |
| MERCEDES-BENZ | T1 Platform/Chassis (B602) | 309 D 3.0 | 1977 – 1996 | 2998 | 65 | 88 |
| MERCEDES-BENZ | T1 Van (601, 611) | 210 D 2.8 | 1977 – 1996 | 2874 | 72 | 98 |
| MERCEDES-BENZ | T1 Van (601, 611) | 210 2.3 | 1977 – 1996 | 2307 | 63 | 86 |
| MERCEDES-BENZ | T1 Van (601, 611) | 407 D 2.4 (611.367, 611.368) | 1977 – 1996 | 2399 | 53 | 72 |
| MERCEDES-BENZ | T1 Van (601, 611) | 210 2.3 | 1977 – 1996 | 2298 | 70 | 95 |
| MERCEDES-BENZ | T1 Van (601, 611) | 210 D 2.8 | 1977 – 1996 | 2874 | 70 | 95 |
| MERCEDES-BENZ | T1 Van (601, 611) | 208 D 2.3 | 1977 – 1996 | 2299 | 60 | 82 |
| MERCEDES-BENZ | T1 Van (601, 611) | 208 D 2.3 | 1977 – 1996 | 2299 | 58 | 79 |
| MERCEDES-BENZ | T1 Van (601, 611) | 207 D 2.4 | 1977 – 1996 | 2399 | 53 | 72 |
| MERCEDES-BENZ | T1 Van (601, 611) | 210 2.3 | 1977 – 1996 | 2298 | 77 | 105 |
| MERCEDES-BENZ | T1 Van (601, 611) | 209 D 2.9 | 1977 – 1996 | 2998 | 65 | 88 |
| MERCEDES-BENZ | T1 Van (B602) | 309 D 3.0 | 1982 – 1996 | 2998 | 65 | 88 |
| MERCEDES-BENZ | T1 Van (B602) | 310 D 2.9 | 1982 – 1996 | 2874 | 70 | 95 |
| MERCEDES-BENZ | T1 Van (B602) | 310 2.3 | 1982 – 1996 | 2299 | 77 | 105 |
| MERCEDES-BENZ | T1 Van (B602) | 310 2.3 | 1982 – 1996 | 2298 | 70 | 95 |
| MERCEDES-BENZ | T1 Van (B602) | 310 D 2.9 | 1982 – 1996 | 2874 | 72 | 98 |
| MERCEDES-BENZ | T1 Van (B602) | 307 D 2.4 | 1982 – 1996 | 2399 | 53 | 72 |
| MERCEDES-BENZ | T1 Van (B602) | 308 D 2.3 | 1982 – 1996 | 2299 | 60 | 82 |
| MERCEDES-BENZ | T1 Van (B602) | 308 D 2.3 | 1982 – 1996 | 2299 | 58 | 79 |
| MERCEDES-BENZ | T1/TN Platform/Chassis | 408 D (611.317, 611.318) | 1981 – 1995 | 2299 | 60 | 82 |
| MERCEDES-BENZ | T1/TN Platform/Chassis | 407 D (611.317, 611.318) | 1981 – 1995 | 2398 | 53 | 72 |
| MERCEDES-BENZ | T1/TN Platform/Chassis | 410 (611.017, 611.018) | 1981 – 1995 | 2298 | 77 | 105 |
| MERCEDES-BENZ | T1/TN Platform/Chassis | 410 D (611.417, 611.418) | 1981 – 1995 | 2874 | 72 | 98 |
| MERCEDES-BENZ | T1/TN Platform/Chassis | 410 (611.017, 611.018) | 1981 – 1995 | 2298 | 70 | 95 |
| MERCEDES-BENZ | T1/TN Platform/Chassis | 410 D (611.417, 611.418) | 1981 – 1995 | 2874 | 70 | 95 |
| MERCEDES-BENZ | T1/TN Platform/Chassis | 409 D (611.417, 611.418) | 1981 – 1995 | 2998 | 65 | 88 |
| MERCEDES-BENZ | T1/TN Platform/Chassis | 408 D (611.317, 611.318) | 1981 – 1995 | 2299 | 58 | 79 |
| MERCEDES-BENZ | T1/TN Van | 410 (611.067, 611.068) | 1981 – 1995 | 2298 | 70 | 95 |
| MERCEDES-BENZ | T1/TN Van | 407 D (611.367, 611.368) | 1981 – 1995 | 2398 | 53 | 72 |
| MERCEDES-BENZ | T1/TN Van | 408 D (611.367, 611.368) | 1981 – 1995 | 2299 | 60 | 82 |
| MERCEDES-BENZ | T1/TN Van | 410 D (611.467, 611.468) | 1981 – 1995 | 2874 | 70 | 95 |
| MERCEDES-BENZ | T1/TN Van | 410 D (611.467, 611.468) | 1981 – 1995 | 2874 | 72 | 98 |
| MERCEDES-BENZ | T1/TN Van | 410 (611.067, 611.068) | 1981 – 1995 | 2298 | 77 | 105 |
| MERCEDES-BENZ | T1/TN Van | 409 D (611.467, 611.468) | 1981 – 1995 | 2998 | 65 | 88 |
| MERCEDES-BENZ | T1/TN Van | 408 D (611.367, 611.368) | 1981 – 1995 | 2299 | 58 | 79 |
