Specifications

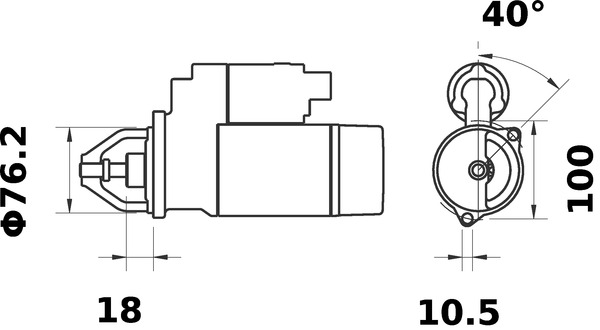

| Bore Diameter 1 (mm) | 10.5 |
| Flange Diameter (mm) | 76.2. for flywheel depth [mm] 18.0 |
| Mounting Angle (degrees) | 40.0 |
| Mounting points diameter (mm) | 100.0 |
| Net Weight (g) | 3885 |
| Number of mounting bores 2 | |
| Number of Teeth 11 | |
| Packaging height (cm) | 13.60 |
| Packaging length (cm) | 25.0 |
| Packaging width (cm) | 16.60 |
| Rated Power (kW) | 1.0 |
| Rotation Direction Anticlockwise rotation | |
| Tooth Pitch (mm) | 12.38 |
| Voltage (V) | 12 |
Bore Diameter 1 [mm] 10,5, Flange Diameter [mm] 76,2, for flywheel depth [mm] 18,0, Mounting Angle [degrees] 40,0, Mounting points diameter [mm] 100,0, Net Weight [g] 3885, Number of mounting bores 2, Number of Teeth 11, Packaging height [cm] 13,60, Packaging length [cm] 25,0, Packaging width [cm] 16,60, Rated Power [kW] 1,0, Rotation Direction Anticlockwise rotation, Tooth Pitch [mm] 12,38, Voltage [V] 12
