Specifications
| Bore Diameter 1 (mm) | 0 |

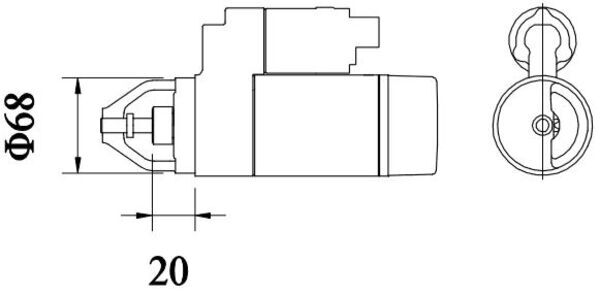

| Flange Diameter (mm) | 68.0. for flywheel depth [mm] 20.0 |
| Mounting Angle (degrees) | 0 |
| Mounting points diameter (mm) | 0 |
| Net Weight (g) | 4038 |
| Number of mounting bores 0 | |
| Number of Teeth 9 | |
| Packaging height (cm) | 13.50 |
| Packaging length (cm) | 31.8 |
| Packaging width (cm) | 16.60 |
| Rated Power (kW) | 2.0 |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 12.35 |
| Transmission Type with reduction gear | |
| Voltage (V) | 12 |
Bore Diameter 1 [mm] 0, Flange Diameter [mm] 68,0, for flywheel depth [mm] 20,0, Mounting Angle [degrees] 0, Mounting points diameter [mm] 0, Net Weight [g] 4038, Number of mounting bores 0, Number of Teeth 9, Packaging height [cm] 13,50, Packaging length [cm] 31,8, Packaging width [cm] 16,60, Rated Power [kW] 2,0, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 12,35, Transmission Type with reduction gear, Voltage [V] 12
