Specifications

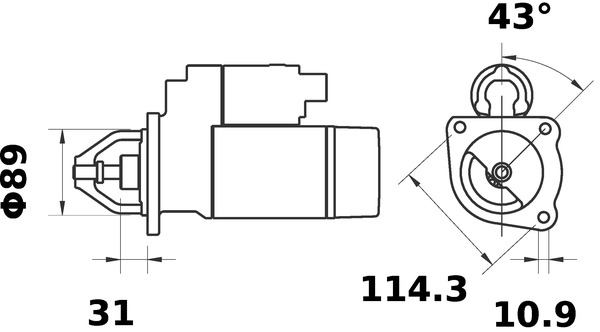

| Bore Diameter 1 (mm) | 10.9 |
| Flange Diameter (mm) | 89.0. for flywheel depth [mm] 31.0 |
| Mounting Angle (degrees) | 43.0 |
| Mounting points diameter (mm) | 114.3 |
| Net Weight (g) | 3609 |
| Number of mounting bores 3 | |
| Number of Teeth 10 | |
| Packaging height (cm) | 13.60 |
| Packaging length (cm) | 25.0 |
| Packaging width (cm) | 16.60 |
| Rated Power (kW) | 1.0 |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 12.38 |
| Voltage (V) | 12 |
Bore Diameter 1 [mm] 10,9, Flange Diameter [mm] 89,0, for flywheel depth [mm] 31,0, Mounting Angle [degrees] 43,0, Mounting points diameter [mm] 114,3, Net Weight [g] 3609, Number of mounting bores 3, Number of Teeth 10, Packaging height [cm] 13,60, Packaging length [cm] 25,0, Packaging width [cm] 16,60, Rated Power [kW] 1,0, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 12,38, Voltage [V] 12
