Starter System

Starter

Name: Starter
Brand: MAHLE
SKU: MS 234-MAHLE
Price: 13700.00 PHP
Availability: InStock

Part No. MS 234 · SKU MS 234-MAHLE

₱13,700.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

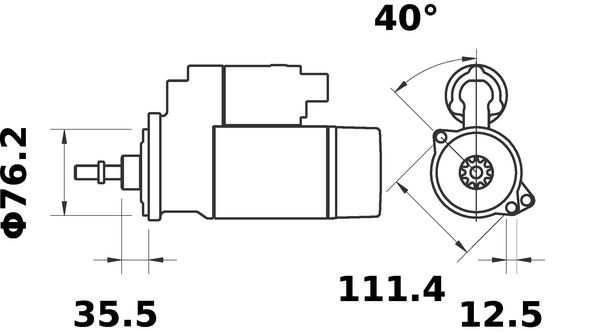

Specifications

Bore Diameter 1 (mm)	12.5
Flange Diameter (mm)	76.2. for flywheel depth [mm] 35.5
Mounting points diameter (mm)	114.0
Net Weight (g)	2917
Number of mounting bores 3
Number of Teeth 9
Packaging height (cm)	13.60
Packaging length (cm)	25.0
Packaging width (cm)	16.60
Rated Power (kW)	1.1
Rotation Direction Clockwise rotation
Transmission Type with reduction gear
Voltage (V)	12

Bore Diameter 1 [mm] 12,5, Flange Diameter [mm] 76,2, for flywheel depth [mm] 35,5, Mounting points diameter [mm] 114,0, Net Weight [g] 2917, Number of mounting bores 3, Number of Teeth 9, Packaging height [cm] 13,60, Packaging length [cm] 25,0, Packaging width [cm] 16,60, Rated Power [kW] 1,1, Rotation Direction Clockwise rotation, Transmission Type with reduction gear, Voltage [V] 12
Fits: AUDI, FORD, SEAT, VW

Supplier Cross-References

MAHLEMS234 FRIESEN4116290 VW20911023 BOSCH1107020 VALEO201030 MAGNETI MARELLI63521120380

Interchangeable Part Numbers

BOSCH0001107020 BOSCH0001107021 BOSCH0001107052 BOSCH0001107053 BOSCH0986016290 VALEO455 548

OE Numbers — AUDI

020911023A 020911023AX 020911023J 020911023L 020911023M 020911023N 055911023L 20911023A 20911023AX 20911023M 20911023N

OE Numbers — FORD

1029411 7203209 95 VW 11000 BA 95 VW 11000 BB ESA1276

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	A3 (8L1)	1.6	1996 – 2006	1595	74	101
AUDI	A3 (8L1)	1.8	1996 – 2006	1781	92	125
AUDI	A3 (8L1)	1.8 T	1996 – 2006	1781	110	150
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	66	90
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	81	110
AUDI	A3 (8L1)	1.8 T quattro	1996 – 2006	1781	132	180
AUDI	A3 (8L1)	S3 quattro	1996 – 2006	1781	154	210
AUDI	A3 (8L1)	1.8 T quattro	1996 – 2006	1781	110	150
AUDI	A3 (8L1)	1.8 T	1996 – 2006	1781	132	180
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	96	130
AUDI	A3 (8L1)	1.6	1996 – 2006	1595	75	102
AUDI	A3 (8L1)	1.9 TDI quattro	1996 – 2006	1896	96	130
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	74	100
AUDI	A3 (8L1)	S3 quattro	1996 – 2006	1781	165	224
AUDI	A3 (8L1)	1.6	1996 – 2006	1598	74	101
