Specifications

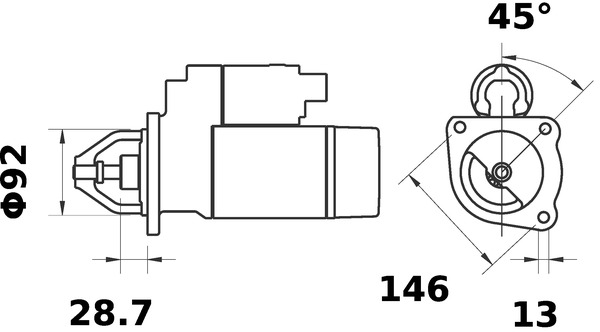

| Bore Diameter 1 (mm) | 13.0 |
| Flange Diameter (mm) | 92.0. for flywheel depth [mm] 28.7 |
| Mounting Angle (degrees) | 45.0 |
| Mounting points diameter (mm) | 146.0 |
| Net Weight (g) | 12510 |
| Number of mounting bores 3 | |
| Number of Teeth 10 | |
| Packaging height (cm) | 14.50 |
| Packaging length (cm) | 38.2 |
| Packaging width (cm) | 21.50 |
| Rated Power (kW) | 2.7 |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 15.42 |
| Voltage (V) | 12 |
Bore Diameter 1 [mm] 13,0, Flange Diameter [mm] 92,0, for flywheel depth [mm] 28,7, Mounting Angle [degrees] 45,0, Mounting points diameter [mm] 146,0, Net Weight [g] 12510, Number of mounting bores 3, Number of Teeth 10, Packaging height [cm] 14,50, Packaging length [cm] 38,2, Packaging width [cm] 21,50, Rated Power [kW] 2,7, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 15,42, Voltage [V] 12
