Specifications
| Bore Diameter 1 (mm) | 10.9 |

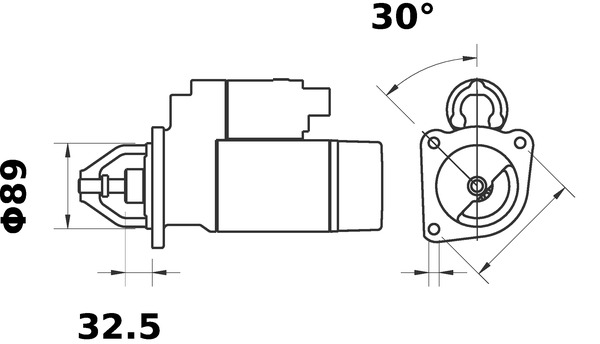

| Flange Diameter (mm) | 89.0. for flywheel depth [mm] 32.5 |
| Mounting points diameter (mm) | 127.0 |
| Net Weight (g) | 8887 |
| Number of mounting bores 3 | |
| Number of Teeth 10 | |
| Packaging height (cm) | 14.50 |
| Packaging length (cm) | 38.2 |
| Packaging width (cm) | 21.50 |
| Rated Power (kW) | 3.2 |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 15.42 |
| Transmission Type with reduction gear | |
| Voltage (V) | 12 |
Bore Diameter 1 [mm] 10,9, Flange Diameter [mm] 89,0, for flywheel depth [mm] 32,5, Mounting points diameter [mm] 127,0, Net Weight [g] 8887, Number of mounting bores 3, Number of Teeth 10, Packaging height [cm] 14,50, Packaging length [cm] 38,2, Packaging width [cm] 21,50, Rated Power [kW] 3,2, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 15,42, Transmission Type with reduction gear, Voltage [V] 12
Fits: LANDINI, MCCORMICK, PORSCHE
Fits: LANDINI, MCCORMICK, PORSCHE
Interchangeable Part Numbers
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| PORSCHE | BOXSTER (987) | 2.7 | 2004 – 2013 | 2687 | 176 | 240 |
| PORSCHE | BOXSTER (987) | S 3.2 | 2004 – 2013 | 3179 | 206 | 280 |
| PORSCHE | BOXSTER (987) | 2.7 | 2004 – 2013 | 2687 | 180 | 245 |
| PORSCHE | BOXSTER (987) | S 3.4 | 2004 – 2013 | 3387 | 217 | 295 |
| PORSCHE | BOXSTER (987) | S 3.4 | 2004 – 2013 | 3387 | 223 | 303 |
| PORSCHE | BOXSTER (987) | S 3.4 | 2004 – 2013 | 3436 | 228 | 310 |
| PORSCHE | BOXSTER (987) | 2.9 | 2004 – 2013 | 2893 | 188 | 255 |
| PORSCHE | BOXSTER (987) | 2.7 | 2004 – 2013 | 2687 | 162 | 220 |
| PORSCHE | BOXSTER (987) | 2.9 | 2004 – 2013 | 2893 | 155 | 211 |
| PORSCHE | BOXSTER (987) | 3.2 | 2004 – 2013 | 3179 | 191 | 260 |
| PORSCHE | BOXSTER (987) | S 3.4 (987.760, 987.761) | 2004 – 2013 | 3436 | 235 | 320 |
