Specifications

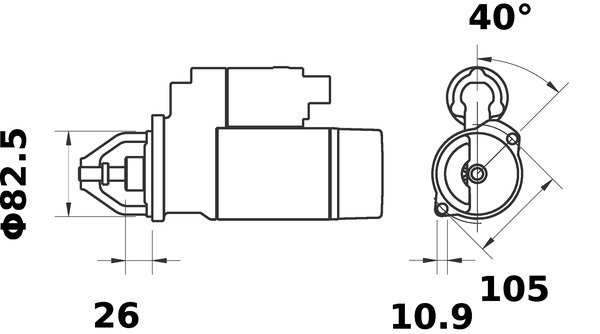

| Bore Diameter 1 (mm) | 10.9 |
| Flange Diameter (mm) | 82.5. for flywheel depth [mm] 26.0 |
| Mounting Angle (degrees) | 40.0 |
| Mounting points diameter (mm) | 105.0 |
| Net Weight (g) | 7936 |
| Number of mounting bores 2 | |
| Number of Teeth 11 | |
| Packaging height (cm) | 13.50 |
| Packaging length (cm) | 31.8 |
| Packaging width (cm) | 16.60 |
| Rated Power (kW) | 3.2 |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 12.38 |
| Transmission Type with reduction gear | |
| Voltage (V) | 12 |
Bore Diameter 1 [mm] 10,9, Flange Diameter [mm] 82,5, for flywheel depth [mm] 26,0, Mounting Angle [degrees] 40,0, Mounting points diameter [mm] 105,0, Net Weight [g] 7936, Number of mounting bores 2, Number of Teeth 11, Packaging height [cm] 13,50, Packaging length [cm] 31,8, Packaging width [cm] 16,60, Rated Power [kW] 3,2, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 12,38, Transmission Type with reduction gear, Voltage [V] 12
