SP Auto Part – OEM & Aftermarket European Auto Parts in the Philippines
Starter

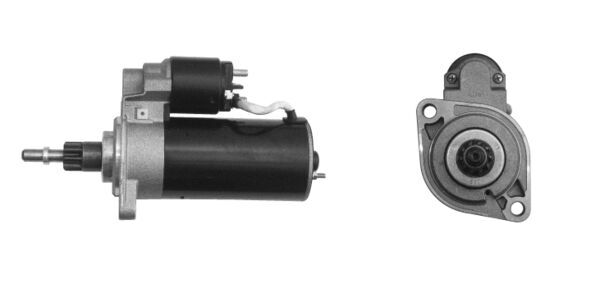

Starter 1 Starter 2 Starter 3
Starter System

Starter

Part No. MS 306 · SKU MS 306-MAHLE
₱37,500.00
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

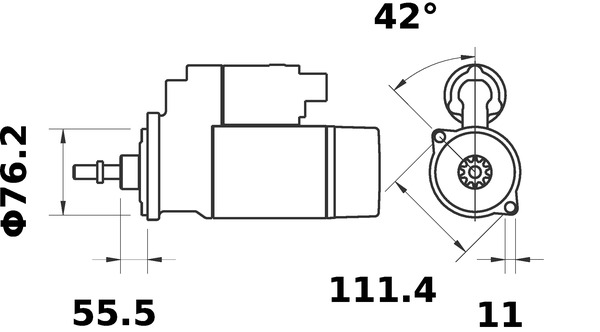

Specifications

Bore Diameter 1 (mm)11.0
Flange Diameter (mm)76.2. for flywheel depth [mm] 55.5
Mounting points diameter (mm)111.4
Net Weight (g)4450
Number of mounting bores 2
Number of Teeth 10
Packaging height (cm)13.50
Packaging length (cm)31.8
Packaging width (cm)16.60
Rated Power (kW)1.7
Rotation Direction Anticlockwise rotation
Tooth Pitch (mm)10.48
Transmission Type with reduction gear
Voltage (V)12
Bore Diameter 1 [mm] 11,0, Flange Diameter [mm] 76,2, for flywheel depth [mm] 55,5, Mounting points diameter [mm] 111,4, Net Weight [g] 4450, Number of mounting bores 2, Number of Teeth 10, Packaging height [cm] 13,50, Packaging length [cm] 31,8, Packaging width [cm] 16,60, Rated Power [kW] 1,7, Rotation Direction Anticlockwise rotation, Tooth Pitch [mm] 10,48, Transmission Type with reduction gear, Voltage [V] 12
Fits: AUDI, SEAT, SKODA, VW

Supplier Cross-References

MAHLEMS306 VW02A911023B BOSCH1110031 VALEO436050 DELCO REMYDRS5470 ERA221229A

Interchangeable Part Numbers

BOM-Prestolite3528270 BOSCH0001110031 BOSCH0001110032 BOSCH0986015470 MAGNETI MARELLI 9432 51437 MAGNETI MARELLI943251437 MAGNETI MARELLI MSR419 MAGNETI MARELLIMSR419 VALEO 436050

OE Numbers — AUDI

02A911023BX

OE Numbers — VW 02A 911 023

BX B
MakeModelType / Engine YearsCCkWHP
AUDI A2 (8Z0) 1.4 TDI 2000 – 2005 1422 66 90
AUDI A2 (8Z0) 1.6 FSI 2000 – 2005 1598 81 110
AUDI A2 (8Z0) 1.4 TDI 2000 – 2005 1422 55 75
AUDI A2 (8Z0) 1.4 2000 – 2005 1390 55 75
AUDI A2 (8Z0) 1.2 TDI 2000 – 2005 1191 45 61
AUDI A3 (8L1) 1.6 1996 – 2006 1598 74 101
AUDI A3 (8L1) 1.6 1996 – 2006 1595 74 101
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 165 224
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 74 100
AUDI A3 (8L1) 1.9 TDI quattro 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.6 1996 – 2006 1595 75 102
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 96 130
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 132 180
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 110 150
AUDI A3 (8L1) S3 quattro 1996 – 2006 1781 154 210
AUDI A3 (8L1) 1.8 T quattro 1996 – 2006 1781 132 180
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 81 110
AUDI A3 (8L1) 1.9 TDI 1996 – 2006 1896 66 90
AUDI A3 (8L1) 1.8 T 1996 – 2006 1781 110 150
AUDI A3 (8L1) 1.8 1996 – 2006 1781 92 125
