Specifications

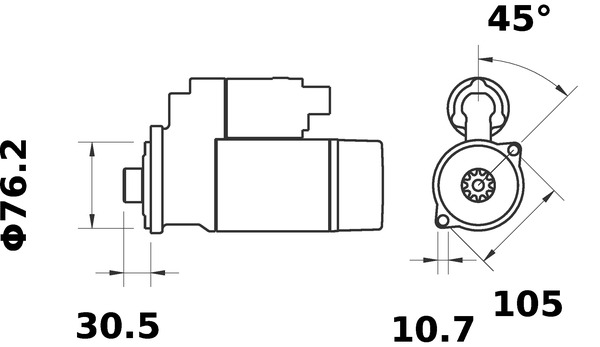

| Bore Diameter 1 (mm) | 10.7 |
| Flange Diameter (mm) | 76.2. for flywheel depth [mm] 30.5 |
| Mounting Angle (degrees) | 45.0 |
| Mounting points diameter (mm) | 105.0 |
| Net Weight (g) | 4495 |
| Number of mounting bores 2 | |
| Number of Teeth 9 | |
| Packaging height (cm) | 13.60 |
| Packaging length (cm) | 25.0 |
| Packaging width (cm) | 16.60 |
| Rated Power (kW) | 2.0 |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 12.35 |
| Transmission Type with reduction gear | |
| Voltage (V) | 12 |
Bore Diameter 1 [mm] 10,7, Flange Diameter [mm] 76,2, for flywheel depth [mm] 30,5, Mounting Angle [degrees] 45,0, Mounting points diameter [mm] 105,0, Net Weight [g] 4495, Number of mounting bores 2, Number of Teeth 9, Packaging height [cm] 13,60, Packaging length [cm] 25,0, Packaging width [cm] 16,60, Rated Power [kW] 2,0, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 12,35, Transmission Type with reduction gear, Voltage [V] 12
