Specifications

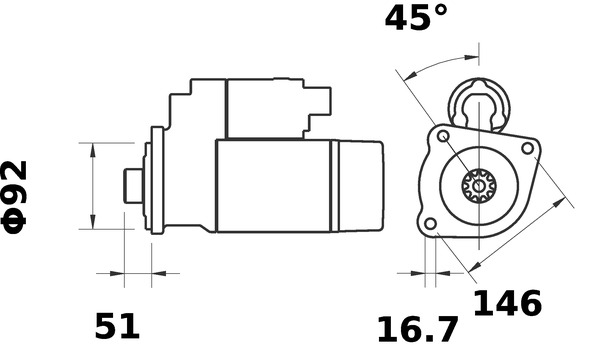

| Bore Diameter 1 (mm) | 16.7 |
| Flange Diameter (mm) | 92.0. for flywheel depth [mm] 51.0 |
| Mounting points diameter (mm) | 146.0 |
| Net Weight (g) | 14170 |
| Number of mounting bores 3 | |
| Number of Teeth 11 | |
| Packaging height (cm) | 15.90 |
| Packaging length (cm) | 45.2 |
| Packaging width (cm) | 20.60 |
| Rated Power (kW) | 6.5 |
| Relay function Starter | |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 20.56 |
| Transmission Type with reduction gear | |
| Voltage (V) | 24 |
Bore Diameter 1 [mm] 16,7, Flange Diameter [mm] 92,0, for flywheel depth [mm] 51,0, Mounting points diameter [mm] 146,0, Net Weight [g] 14170, Number of mounting bores 3, Number of Teeth 11, Packaging height [cm] 15,90, Packaging length [cm] 45,2, Packaging width [cm] 20,60, Rated Power [kW] 6,5, Relay function Starter, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 20,56, Transmission Type with reduction gear, Voltage [V] 24
