Specifications
| Bore Diameter 1 (mm) | 0 |
| Clamp 31 | |

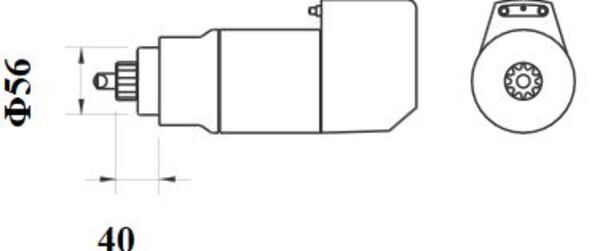

| Flange Diameter (mm) | 56.0. for flywheel depth [mm] 40.0 |
| Mounting Angle (degrees) | 0 |
| Mounting points diameter (mm) | 0 |
| Net Weight (g) | 15248 |
| Net Weight (g) | 16130 |
| Number of mounting bores 0 | |
| Number of Teeth 9 | |
| Packaging height (cm) | 15.90 |
| Packaging length (cm) | 45.2 |
| Packaging width (cm) | 20.60 |
| Rated Power (kW) | 3.6 |
| Rotation Direction Clockwise rotation | |
| Tooth Pitch (mm) | 14.4 |
| Voltage (V) | 12 |
Bore Diameter 1 [mm] 0, Clamp 31, Flange Diameter [mm] 56,0, for flywheel depth [mm] 40,0, Mounting Angle [degrees] 0, Mounting points diameter [mm] 0, Net Weight [g] 15248, Net Weight [g] 16130, Number of mounting bores 0, Number of Teeth 9, Packaging height [cm] 15,90, Packaging length [cm] 45,2, Packaging width [cm] 20,60, Rated Power [kW] 3,6, Rotation Direction Clockwise rotation, Tooth Pitch [mm] 14,4, Voltage [V] 12
