Specifications
| Bore Diameter 1 (mm) | 9 |

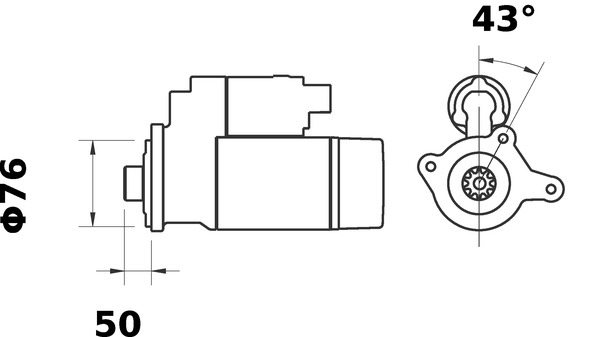

| Flange Diameter (mm) | 76.0. for flywheel depth [mm] 50.0 |
| Mounting Angle (degrees) | 43.0 |
| Mounting points diameter (mm) | 55.82 |
| Net Weight (g) | 5807 |
| Number of mounting bores 3 | |
| Number of Teeth 12 | |
| Packaging height (cm) | 13.50 |
| Packaging length (cm) | 31.8 |
| Packaging width (cm) | 16.60 |
| Rated Power (kW) | 3.2 |
| Rotation Direction Clockwise rotation | |
| Thread Size M12 | |
| Tooth Pitch (mm) | 12.53 |
| Transmission Type with reduction gear | |
| Voltage (V) | 12 |
Bore Diameter 1 [mm] 9, Flange Diameter [mm] 76,0, for flywheel depth [mm] 50,0, Mounting Angle [degrees] 43,0, Mounting points diameter [mm] 55,82, Net Weight [g] 5807, Number of mounting bores 3, Number of Teeth 12, Packaging height [cm] 13,50, Packaging length [cm] 31,8, Packaging width [cm] 16,60, Rated Power [kW] 3,2, Rotation Direction Clockwise rotation, Thread Size M12, Tooth Pitch [mm] 12,53, Transmission Type with reduction gear, Voltage [V] 12
